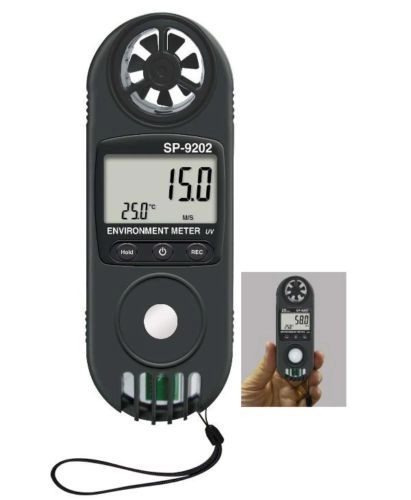

This professional device combines 11 amazing features, sold conveniently in one hand-held meter. The SP-9202 is a tiny, easy to use, hand held instrument that measures a variety of process and environmental parameters. One feature that sets this device apart is the capability to measure harmful UVA wave lengths, a $100 value! Real time measured values are displayed clearly (day or night) on a high contrast LCD back light display. The Record and Hold feature enables the operator to monitor the Min/Max and latch the displayed readings at any time. This unique instrument comes complete with a wrist lanyard, soft carrying pouch and CR 2032 DC3V button cell battery.



DETAILS

The Lutron SP-9202 is one of the latest releases from Lutron and represents the top function model. Air flow can be calculated from duct size, and Dew Point, Wet bulb, Heat Index, Wind chill and other variables are also calculated from the combined measurements. An exceptional combination of readings in a tiny package.

Multi-functions:

• Air velocity ( Wind speed )/Temp., Air flow ( CMM, CFM ).
• Air velocity : 0.4 to 20.0 m/s.
• Humidity/Temp., Dew point, Wet bulb Temp..
• Wind chill, Heat index.
• Barometer, Altitude.
• UV Light ( spectrum : 260 nm to 390 nm, UVA/UVB )

Display unit:

• Air velocity : m/s, ft/min., kmh, mph, knot.
• Air flow : CMM, CFM.
• Humidity/Dew point/Wet bulb : %RH, ºC/º0.
• Wind chill/Heat index : C/0.
• Barometer : hPa, inHg, mmHg.
• Altitude : meter, feet ( ft ).
• UV : mW/cm2

Optional  :

• Pt 1000 ohm Temp. probe for external.Temp. measurement.



Features:



Air Velocity

• Measurements range from 0.4 to 20.0 m / s, 1.4 to 72.0 km / h, 0.9 to 44.7 mph, 0.8 to 38.8 knot, 80 to 3937 ft / min.
• Display Resolution 0.1 m / s
• Accuracy ± 3% Full Scale
• Wind speed m / s, km / h, ft / min, knots, miles / h



Air Flow

• Air volume measurement range 0.024 to 36000 CMM, 0.847 to 1271300 CFM
• Display Resolution 0.001 / 0.01 / 0.1 / 1



Temperature



• Temperature range 0 to 50
• Display Resolution 0.1
• Accuracy ± 1.2 Acc





Relative humidity



• Temperature range 10 to 95% RH
• 0.1% RH Display Resolution
• Accuracy ± 4% RH





Dew Point

• Temperature range -25.3 to 48.9
• Display Resolution 0.1

Wet Bulb



• Temperature range -5.4 to 49.0
• Display Resolution 0.1
• UV light





Measuring range

• 1 uW / cm2, 0.01 mW / cm2
• Accuracy ± (4% full scale + 2 dgt)

Barometric Pressure



• Air pressure range 10 to 1100 hPa, 7.5 to 825 mmHg, 0.29 to 32.48 inHg
• Display Resolution 0.1 hPa
• Accuracy ± 1.5 hPa





Pt1000 ohm temperature (optional)

• Temperature range -10 to 100.0 ????
• Display Resolution 0.1
• Accuracy ± 1.2 Acc

Heat Index

• Temperature range 0 to 100.0
• Display Resolution 0.1

Wind Chill Index

• Temperature range -9.4 to 44.2
• Display Resolution 0.1
• Accuracy ± 2.0 Acc

Altitude

• Measuring range: -2000 to 9000m, -6000 to 30000m
• 1m display resolution
• Accuracy ± 15m
• Battery CR2032 DC 3V
• Body Size 120x45x20 mm (160g)
• Probe Temperature Probe Pt1000 (TP-1000)
