Cleanroom Equipment & Supplies

Accessories for the Autovac

CODE	DESCRIPTION
Replacement Consumables for the Omniflex Auto Vac System
KVCM08	Ergo Mop Handle
KVCM13	White Spreader Pads 4.5" x 16", (1 x 5pcs/pkt)
KVCM09	Mop Frame 18"
KVCM21A	Replacement Squeegee Blades (2pcs required for Dispense & Vac)
KVCM22A	S/s Wheel Assembly for Squeege Head (2pcs required for Dispense & Vac)
KVCM26	Squeegee / Brush Head 14" Complete (2pcs required per set)
KVCM25	Mohawk Grout Brush
Spare Parts for Omniflex Dispense & Vac
KVCM27	Omniflex Vacuum Head Assembly, 240V
KVCC02	Kaipow Degreaser, Packing: 4 x 1gln/case
	Crush resistant and greese proof reolacement hose 35''



REDUCED SLIP-AND-FALL ACCIDENTS

Rapid drying combined with extremely clean surfaces means immediate availability and reduced slip-and-fall accidents. In fact, the system has been certified by the National Floor Safety Institute (NFSI) as providing High Traction.

FRESH SOLUTION REDUCES THE RISK OF CROSS-CONTAMINATION

The self-dispensing solution tank ensures that custodians use only fresh, clean solution, which minimizes the possibility of spreading soils and contamination.

INDUSTRY'S BEST SQUEEGEE BLADES

Developed for cleaning performance and durability in "hostile" environments, our squeegee blades are engineered for maximum soil removal. Plus, they're chemical, grease-and wear-resistant for extra-long life.

DIVIDE AND CONQUER

Split OmniFlex components apart to divide cleaning tasks and cut cleaning time in half or more. For example, one worker applies cleaning solution with the trolley-bucket, while another worker brushes and vacuums up the solution.

DUMP IN TOILET OR SLOP SINK

Save time and avoid worker injuries by dumping dirty water in the nearest toilet or slop sink. Empty the trolley-bucket with the pour spout on the rim, or by simply opening the spigot over a drain. The Wet/Dry Vacuum empties with a convenient drain hose.

LONG RANGE VAC HOSE

The OmniFlex Wet/Dry Vac boasts one of, if not the, longest vacuum hoses available on wet/dry vacuums today, making it perfect for larger cleaning tasks.

SQUEEGEE HEAD BRUSH

This practical accessory combines two tools into one by integrating the Kaivac's existing high performance squeegee vacuum head with a heavy duty bristled floor brush. Just flip it to instantly switch from vacuuming to brushing. As a result, it eliminates time wasted changing tools while wet vacuuming floors.

EASY CLEAN OUT

All of the OmniFlex components are designed for easy clean out. They are extremely easy to separate and rinse out before storing

CLEAN OUTSIDE AREAS

Drive-thrus, parking lots and sidewalks are a challenge to clean and are subject to environmental regulations and fines. The Kaivac vacuum collects all water and soils for safe, environmentally-friendly disposal.

TIDY STORAGE

The OmniFlex system was engineered for space efficiency. Hoses and cords wrap neatly, and the whole system splits apart for efficient storage in even the tightest of spaces.

NO SERVICE TRUCKS REQUIRED

In the rare case that repairs are necessary, all components of the OmniFlex system are small enough that they are easily shipped via UPS or other parcel post service for quick replacement.

PICK UP SPILLS - NO SWEEPING

The OmniFlex is a convenient and easy solution for spills. If necessary, apply cleaning solution either with the trolley-bucket spigot or with the OmniFlex Pump system, brush (if needed) and then vacuum up the liquid. Floors are clean and dry in an instant.

FLOOR STRIPPING

Easily apply floor stripping solution through the trolley-bucket. Then, vacuum it up with the OmniFlex Wet/Dry Vac.

FLOOR SAFETY

Kaivac's No-Touch Cleaning® and Crossover Cleaning™ systems have been certified by the National Floor Safety Institute (NFSI) as providing 'High Traction' in accordance with the ANSI/NFSI B101.1-2009 standard.

This package includes the following products:

OmniFlex™ Wet/Dry Vacuum

The powerful OmniFlex Wet/Dry Vacuum is designed for heavy-duty commercial and industrial floor maintenance. Used stand-alone as a traditional wet/dry vac, it's great for picking up spills, detail cleaning, job site cleanup, flooding, vehicle and equipment detailing, and more. Or, it can be easily mounted on Kaivac's OmniFlex trolley-bucket where it becomes an integral component of a high-performance OmniFlex Dispense-and-Vac or Spray-and-Vac cleaning system.

OmniFlex™ Trolley-Bucket

The patented OmniFlex Trolley-Bucket is the most versatile mop bucket available today. For starters, it makes an ideal mop bucket/wringer combo for supporting traditional cleaning methods. But, it also does a whole lot more. Its built-in self dispensing spigot makes it perfect for applying fresh cleaning solution, degreaser, stripping solution, floor finish and gym finish in a fast and flawless manner. Add optional bins and microfiber accessories and convert it into a full-featured microfiber trolley system. Plus, when you're ready, simply add OmniFlex™ components and tools to build a custom hygienic cleaning system that fits your exact needs. Considering all that the trolley-bucket offers, why would you ever buy another standard mop bucket again? Check it out and see why we call it "the bucket with a future."

Why is Dispense-and-Vac Better?

Floors can be difficult and expensive to maintain. If not cared for properly, they not only become unsightly, they can drive customers away, cause slip and fall accidents, and even become a health hazard. Unfortunately, traditional mopping can make matters worse. Mopping is slow, ineffective and even potentially dangerous - leaving floors slippery, wet, and with very few of the soils and biopollutants removed. Grouted floors are even trickier. In fact, during mopping, grout lines actually "squeegee" soil and soap scum from mops. When the water evaporates, soils, mineral deposits, soap scum and potentially harmful biopollutants are left to penetrate and coat the porous grout. Grout lines that started out light gray or white soon become stained and darkened.

The OmniFlex Dispense-and-Vac system offers a low cost solution to this expensive problem.

Highlights:

• Spigot throttle manages the amount of solution used, reducing chemical costs up to 90% while producing better results.
• Powerful vacuum combined with top quality squeegee head thoroughly removes soils and contaminants.
• Rapid drying means reduced slip and fall accidents and immediate availability.
• Cleaning solution always stays fresh because soiled water is vacuumed into a separate tank.
• Very easy to learn and use. Even a first-time user can achieve great results.
• Cleans 4,000 square feet of floor space in a single trip (400 ft²/gallon).

• Double your pickup capacity by emptying the vac tank into the trolley-bucket.

• Simply add optional pump system to convert to a Spray-and-Vac system.
• Low cost is often below capital expenditure thresholds.

Perfect For:

• Food Service
• Convenience Stores
• Healthcare
• Education
• Retail
• Daily Floor Cleaning

• - Restroom/washroom Cleaning
  • Degreasing Kitchens
  • Stripping Waxed Floors
  • Spill Pick-up
  • Flood Pick-up

Wet/Dry Vacuum Specifications:

Vac Tank: 11.5 Gallons (43,5 l)
Dump/Drain Hose: 23 inches (58,4 cm) long
Vac Tank Cleanout: 100% via Dump/Drain Hose
Vac CFM: 60 cfm (1700 l/min)
Vac Motor Lift: 80 inches (203,2 cm)

Vac Hose: 45' (13,7 m) slinky style

Vac Wand: 2-piece

Three protection: operator, sample and environment. Airflow system: 70 % air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbilogical research in the absence of working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.









Advantage:

1. Small dimension, save space.

2. Centrifugal fan, speed adjustable; H14 HEPA filter.

3. Motorized front window: The front window is motorized for convenient, one-hand operation.

4. Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height.

5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

6. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

7. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

8. With memory function in case of power-failure.



Models:

Model	11231 BBC 86
External Size (W*D*H)	700*650*1230 mm
Internal Size (W*D*H)	600*500*540mm
Tested Opening	Safety Height 200 mm?8’’?
Max Opening	370mm(15’’)
Inflow Velocity	0.53±0.025 m/s
Down flow Velocity	0.33±0.025 m/s
HEPA Filter	Two, 99.999% efficiency at 0.3μm. Filter life indicator.
Front Window	Motorized. Toughened glass . Anti UV.
Noise	EN1249 ≤ 58 dB / NSF49 ≤ 61dB
UV Lamp	30W*1
	UV timer, UV life indicator, emission of 253.7 nanometers  for most efficient decontamination
LEDLamp	8W*2
Illumination	≥1000Lux
Consumption	500W
Sockets	Two, total load of two sockets: 500W
Display	LCD display
Control System	Microprocessor
Airflow System	70% air recirculation,30% air exhaust
Visual and AudioAlarm	Filter replacement, window over height, abnormal air flow velocity
Material	Work Zone: 304 stainless steel.
	Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750mm with optional base stand
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LEDlamp, UV lamp*2,Remote control, Waterproof sockets*2
Optional Accessory	Base stand, Universal caster with brake and leveling feet, SS Water tap*1, Gas tap*1
Gross Weight without Base Stand	Wooden Box:164kg                Carton:121kg
Gross Weight with Base Stand	Wooden Box:196kg
Package Size without Base Stand(W*D*H)	Wooden Box: 860*800* 1450 mm    Carton:820*760*1430mm
Package Size with Base Stand(W*D*H)	Wooden Box: 860*960* 1450 mm



Standard Accessory?

LED Lamp                            1pc

UV lamp                              2pcs

Remote control                    1pc

Waterproof sockets              2pcs



Optional Accessory:

Water and gas tap, base stand, universal caster with brake and leveling feet

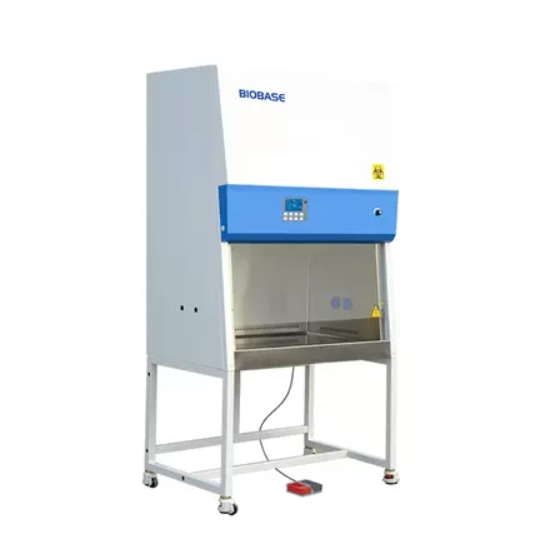

Advantage:

1. Motorized front window.
2. Time reserve function.
3. ULPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
7. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
8. Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.



Models:

Model	BSC-1100IIA2-X	BSC-1300IIA2-X	BSC-1500IIA2-X	BSC-1800IIA2-X	BSC-2000IIA2-X
Internal Size (W*D*H)	940* 600*660 mm	1150*600*660 mm	1350*600*660 mm	1625*600*660 mm	1800*600*660 mm
External Size (W*D*H)	1100*750*2250mm	1300*750*2250mm	1500*750*2250 mm	1800*775*2290mm	1950*800*2170 mm
Tested Opening	Safety Height = 200 mm(8'')
Max Opening	420mm(17’’)	420mm(17’’)	500mm(20’’)	550mm(22’’)	400mm(16’’)
Inflow Velocity	0.53±0.025 m/s
Downflow Velocity	0.33±0.025 m/s
ULPA Filter	Two, 99.9995% efficient at 0.12um. Filter life indicator.
Front Window	Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.
Noise	EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp	30W*1	30W* 1	40W* 1	40W*1	40W* 1
	UV timer, UV life indicator, emission of 253.7 nanometers  for most efficient decontamination.
Illuminating Lamp	LED Lamp
	12W*2	12W*2	16W*2	16W*2	16W*2
Illumination	≥1000Lux
Consumption	760W	800W	900W	900W	1500W
Waterproof Sockets	Two, total load of two sockets: 500W
Display	LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and audio alarm	Filter replacement, front window at unsafe height, abnormal airflow velocity.
Material	Work Zone: 304 stainless steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height	750mm
Caster	Footmaster caster
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2
Optional Accessory	Water and gas tap, Electric height adjustable base stand.
Gross Weight	243kg	280kg	316kg	395kg	420kg
Package Size (W*D*H)	1220× 1000× 1840 mm	1460*1050*1800 mm	1630*1000*1820 mm	1930*1000*1820 mm	2090*1050*1860 mm

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

BBS-DSC/BBS-SSC Lab/Medical furniture equipment Double Sides Type Vertical Laminar flow cabinet





Summary

Laminar Flow Cabinet-sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.



Features

LED Display
Microprocessor control system, LED display.

UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.

Double Sides
Double sides work bench, operators can sit face to face.





Parameters

Model	BBS-DSC	BBS-SSC
External Size (W*D*H)	1040*660*1770mm	1440*660*1770mm
Internal Size (W*D*H)	940*560*545mm	1340*560*545mm
Work Surface Height	750mm
Display	LED Display
Airflow Velocity	Average of 0.3~0.5m/s
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Work Table: 304 stainless steel
Pre-filter	Polyester fiber, washable
HEPA Filter	99.999% efficiency at 0.3um
Noise	<60dB
Front Window	Manual, 5mm toughened glass, anti-UV
Max Opening	350mm	350mm
UV Lamp	18W*1	30W*1
	Emission of 253.7 nanometers
Fluorescent Lamp	21W*1	28W*1
Consumption	350W	600W
Caster	Universal caster with leveling feet
Power Supply	AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ
Standard Accessory	Fluorescent lamp, UV lamp*2, Base stand
Gross Weight	150kg	174kg
Package Size (W*D*H)	1190*890*1340mm	1590*890*1340mm



Standard Accessory

Fluorescent lamp 1pc
UV lamp 2pcs
Base stand 1pc

The laminar flow clean bench is a work bench or similar enclosure which has its own filtered air supply. It provides product protection by ensuring that the work in the bench is exposed only to HEPA-filtered air. Laminar flow clean benches are widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

BIOBASE Laminar Flow Clean Bench

The laminar flow clean bench is a work bench or similar enclosure which has its own filtered air supply. It provides product protection by ensuring that the work in the bench is exposed only to HEPA-filtered air. Laminar flow clean benches are widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments. BIOBASE can offer vertical flow models for you

Advantage:

1. HEPA Filters. Performance: 99.995% @0.3 um
2. Air speed adjustable.

SPECIFICATION

Internal Size	800 *600*540mm (L*W*H)
External Size	802*600*1600mm (L*W*H)
Air Velocity	0.3~0.6m/s (adjustable air velocity)
Filter	Main Filter: HEPA filter Pre-filter: For particle 3-30um ,Washable
Front Window	Sliding toughened glass, controlled by constant force spring, height is adjustable.
Display	LED Display
Blower	Speed adjustable
Lighting	≥300 lux
Fluorescent Lamp	15W*1
UV Lamp	15W*1
Noise	≤ 63 dB
Material	Work surface: stainless steel Main body: cold-roll steel plate with corrosion-proof coating
Power	110V-240V/50Hz-60Hz

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

Vertical Laminar Flow Cabinet

Laminar Flow Cabinet-sample protection only Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air

SPECIFICATION

Model	BBS-DDC
External Size(W*D*H),mm	1040*615*1770
Internal Size(W*D*H),mm	940*540*545
Work Surface Height	750mm
Max Opening	350MM
Display	LED Display
Airflow Velocity	Class I
Protection Type	Average of 0.3~0.5m/s, air speed adjustable.
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating Work Table: 304 stainless steel
Pre-filter	Polyester fiber, washable
HEPA Filter	99.999% efficiency at 0.3um
Noise	<60dB
Front Window	Manual,5mm toughened glass, anti-UV
Blower	Built-in centrifugal blower; Speed adjustable.
Front Window	5mm toughened glass; Motorized; Height adjustable.
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	350W
Fluorescent Lamp	21W*1
UV Lamp	H 18W*1
Caster	Universal wheel with leveling feet
Standard Accessory	Fluorescent lamp, UV lamp*2 ( for all models ) Water & gas tap (for model BBS-V680) Base stand (except model BBS-V680)
Optional Accessory	Active carbon filter
Gross Weight	150kg
Package Size (W*D*H), mm	1190*890*1340

--LCD Display

--Work Zone

--Remote Control

--UV lamp

--Front Window

--Footmaster caster

--Foot Switch

Technical Parameters

Model:BSC-1300IIA2-X

Internal Size(W*D*H): 1150*600*660 mm

External Size(W*D*H):1300*750*2250 mm

Tested Opening:Safety Height 200 mm(8’’)

Max Opening:420mm(17’’)

Inflow Velocity:0.53±0.025 m/s

Downflow Velocity:0.33±0.025 m/s

HEPA Filter:Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window:Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise:EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp:30W* 1, UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

Fluorescent Lamp:21W*2

Illumination:≥1000Lux

Consumption:800W

Waterproof Sockets:Two, total load of two sockets: 500W

Display:LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System:Microprocessor

Airflow System:70% air recirculation, 30% air exhaust

Visual and audio alarm:Filter replacement, window over height, abnormal air flow velocity.

Material:Work Zone: 304 stainless steel | Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height:750mm

Caster:Footmaster caster

Power Supply:AC220V±10%, 50/60Hz; 110V±10%, 60Hz
