Industrial Furnaces & Ovens

Introducing the 5kg Industrial Oven – Your optimal solution for efficient heat treatment. Our industrial parts product offers superior performance in baking, drying, and curing processes. Engineered for precision, it ensures even heating and consistent results for a variety of materials. With user-friendly controls, it simplifies operation, while its robust build guarantees durability for heavy-duty use. Whether for manufacturing, laboratories, or workshops, rely on the 5kg Industrial Oven to deliver reliable and precise heat treatment. Elevate your industrial processes with our oven – where quality meets efficiency, ensuring your products meet the highest standards.

Introducing the Mother Oven – Your ultimate solution for industrial heat treatment. Our industrial parts product offers unmatched performance in baking, curing, and drying processes. Engineered for precision, it ensures consistent and controlled heating for various materials. With user-friendly controls, it simplifies operation, while its durable construction ensures reliability for heavy-duty use. Whether for manufacturing, research, or laboratories, trust the Mother Oven to provide consistent and superior heat treatment results. Elevate your industrial processes with the Mother Oven – where reliability meets excellence, ensuring your products meet the highest quality standards.

Whatever you want to perform: material tests, ageing of computer chips, run complex experiments with highly sensitive loads, drying or tempering electronic components, hardening plastic resin or heating plasticine. The Memmert U universal heating oven / drying over.

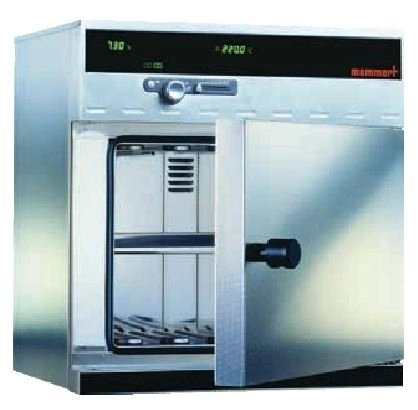

Standard Equipment

Ventilation and Control

--natural convection

--continuous adjustment of pre-heated fresh air admixture

--Vent connection with restrictor flap

--microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

--one pt100 sensor class A in 4-wire-circuit

--integrated digital timer (1 min. up to 99 h 59 min)

--digital LED-display of set and actual temperature as well as remaining process time

--resolution of display for set value 0,5 Degree Celcius for actual value 0,5 Degree Celcius

--incl.work calibration certificate for +160 Degree Celcius

Overtemperature protection (double)

-- in case of total breakdown of sensor the heating is switched off at approx. 10°C above set value

-- in case of failure of the switching element, the heating will be controlled by an additional relay approx. 10°C above the set temperature

-- in case of a faulty sensor (incorrect measuring values) or the total breakdown of the controller the heating is switched off at approx 10°C above the max. oven temperature by the mechanical temperature limiter TB class 1

-- for very sensitive and/or valuable load in terms of being non-reproducable, we do recommend ovens of our E- and P-class guaranteeing an even higher safety standard

Textured Stainless Steel Casing

--w x h x d: 550 x 680 x 480 mm

--fully insulated stainless steel door with double locking and 4-point adjustment

--rear zinc-plated steel

Interior -Heating Concept

--w x h x d: 400 x 400 x 330 mm, 53 L

--easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

--2 stainless steel grids

Temperature Range

from +30°C (however, at least 5°C above ambient) up to +220 °C

Voltage / Power Rating

--230 V (+/- 10%), 50/60 Hz

approx 1.400 @ (during heating)

Packing Data

--Net weight approx. 35 kg

-- Gross weight carton approx. 45 kg

--Dimensions approx.: Carton w x h x d : 67 x 78 x 63 cm

--The appliances must be transported upright

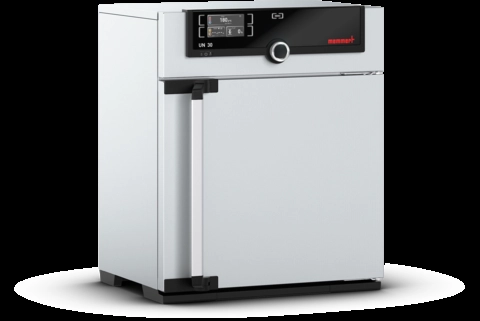

The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

Properties

Temperature

Set temperature range in °C:min. 5°C above ambient up to +300°C

Temperature:1 Pt100 sensor DIN class A in 4-wire-circuit

Control technology

Language setting:German, English, Spanish, French, Polish, Czech, Hungarian

ControlCOCKPIT:SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display

Timer:Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT:the process time does not start until the set temperature is reached

Calibration:three freely selectable temperature values

Adjustable parameters:temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime

Ventilation

Convection:natural convection

Fresh air admixture:adjustment of pre-heated fresh air admixture by air flap control in 10 % steps

Vent:vent connection with restrictor flap

Communication

Documentation:programme stored in case of power failure

Programming:AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Safety

Temperature control:

Adjustable electronic over temperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

Autodiagnostic system:for fault analysis

Standard equipment

Internals:1 stainless steel grid(s), electropolished

Works calibration certificate:Calibration at +160°C

Door:fully insulated stainless steel door with 2-point locking (compression door lock)

Stainless steel interior

Interior:easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume:32 L

Dimensions W x H x D in mm:w(A) x h(B) x d(C): 400 x 320 x 250 mm

Max. number of internals:3

Max. loading of chamber:60 kg

Max. loading per internal:20 kg

Textured stainless steel casing

Dimensions:w(D) x h(E) x d(0): 585 x 704 x 434 mm

Housing:rear zinc-plated steel

Electrical data

Voltage Electrical load:230 V, 50/60 Hz approx. 1600 W

Voltage Electrical load:115 V, 50/60 Hz approx. 1600 W

Packing/shipping data/Setting Up

Set Up:The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.

Transport information:The appliances must be transported upright

Customs tariff number:8419 8998

Country of origin:Federal Republic of Germany

WEEE-Reg.-No.DE 66812464

Dimensions approx incl. carton:B x H x 1: 660 x 890 x 650 mm

Net weight:approx. 45 kg

Gross weight carton:approx. 61 kg

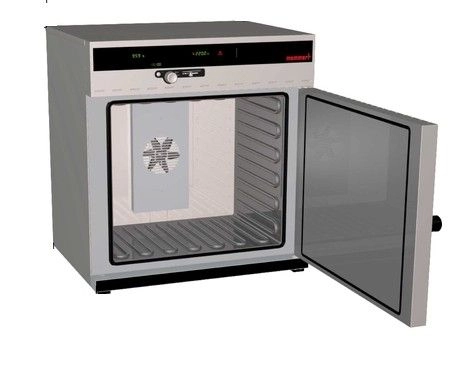

MEMMERT Universal Ovens with fan, UFB series, 108Litre, UFB 500, (forced air circulation), +30 to +220°C; (actual minimum: 10°C above ambient)

Standard Equipment

Ventilation and Control

--forced air circulation by quiet air turbine

--continuous adjustment of pre-heated fresh air admixture

--vent connection with restrictor flap

--microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

--one Pt100 sensor class A in 4-wire-circuit

--integrated digital timer (1 min. up to 99 h 59min) to switch off heating to stand-by mode

--digital LED- display of set and actual temperature as well as remaining process time

--resolution of display for set value and actual value 0,5 °C

Overtemperature protection (double)

--in case of total breakdown of sensor, the heating is switched off at approx. 10 °C above set value

--in case of failure of the switching element, the heating will be controlled by an additional relay approx. 10 °C above the set temperature

--in case of a faulty sensor (incorrect measuring values) or the total breakdown of the controller the heating is switched off at approx. 10 °C above the max. oven temperature by the mechanical temperature limiter TB protection class 1

--for very sensitive and/or valuable load in terms of being non-reproducable, we recommend ovens of our E- and P-class guaranteeing an even higher safety standard

Textured Stainless Steel Casing

--w x h x d: 710 x 760 x 550 mm

--fully insulated stainless steel door with double locking and 4-point adjustment

--rear zinc-plated steel

Interior - Heating Concept

--w x h x d: 560 x 480 x 400 mm, 108 l

--easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

--2 stainless steel grids

Temperature Range

--from +30 °C (however, at least 10 °C above ambient) up to +220 °C

Voltage / Power Rating

--230 V (+/- 10%), 50/60 Hz

--ca. 2.000 W (during heating)

Packing Data

--net weight approx. 56 kg

--gross weight carton approx. 69 kg

--dimensions approx.: carton w x h x d: 82 x 97 x 67 cm

--the appliances must be transported upright

Accessories

--Perforated stainless steel shelf E0(x)

--Stainless Steel Grid E3(x)

This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.

Characteristics

1.Vertical type, cold rolling steel electrostatic spraying exterior.

2.Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.

3. High quality mirror finished stainless steel interion; Foursquare semicircle transition; Flexible positioning and removable shelf; Airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.

4.PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.

5.New desighed door, and with double-galss observation window ensures effeetive heat-dissipation, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.

Specifications

Model:WGL-625B

Voltage:380V/50HZ

Temperature Variation (°C):RT+10-300°C

Tem.fluctuation(°C):±1.0°C

Tem.distinguish ability(°C):0.1°C

Heating power(kw):5

Interior dimensions:660×760×1250

Exterior dimensions:895×925×1830

Packaging dimensions:1000×1080×2000

Load per rack:25/kg 3 for standard configuration

Gross/net weight(kg):90

Timing range1-9999min

Applications of this equipment in industrial and mining enterprises, labs and scientific research institutions include drying, melting, baking and sterilization etc.

Characteristics

1.Cold rolling steel electrostatic spraying exterior; Stainless steel or cold rolling steel corrosion-resistant inner chamber.

2.Optional pointer meter or intelligent temperature controller with PID program and digital display, and with function of timing and over-temperature protection.

3. Door with double-layer tempered glass for clearly observation.

4.Door with silicon rubber seal ensures good sealability.

5.Low-noise fan enables long continuous working.

Specifications

Model:101-3AB

Voltage:220V50Hz

Tem. range:Room Tem. +20~250

Tem. motion:± 1

Chamber Size(mm):750× 600× 500

Product Size(mm):965× 706× 1065

Packing size(mm):1150× 830× 1190

Power(Kw):4

Shelf load(Kg):15

N. W. (Kg):110

G. W. (Kg):140

Applications of this equipment in industrial and mining enterprises, labs and scientific research institutions include drying, melting, baking and sterilization etc.

Characteristics

1.Cold rolling steel electrostatic spraying exterior; Stainless steel or cold rolling steel corrosion-resistant inner chamber.

2.Optional pointer meter or intelligent temperature controller with PID program and digital display, and with function of timing and over-temperature protection.

3. Door with double-layer tempered glass for clearly observation.

4.Door with silicon rubber seal ensures good sealability.

5.Low-noise fan enables long continuous working.

Specifications

Model:101-2AB

Voltage:220V50Hz

Tem. range:Room Tem. +20~250

Tem. motion:± 1

Chamber Size(mm):550× 550× 450

Product Size(mm):850× 600× 725

Packing size(mm):970× 720× 805

Power(Kw):2

Shelf load(Kg):15

N. W. (Kg):58

G. W. (Kg):79

Applications of this equipment in industrial and mining enterprises, labs and scientific research institutions include drying, melting, baking and sterilization etc.

Characteristics:

1. Cold rolling steel electrostatic spraying exterior; Stainless steel or cold rolling steel corrosion-resistant inner chamber.
2. Optional pointer meter or intelligent temperature controller with PID program and digital display, and with function of timing and over-temperature protection.
3. Door with double-layer tempered glass for clearly observation.
4. Door with silicon rubber seal ensures good sealability.
5. Low-noise fan enables long continuous working.

Main parameters:

Applications of this equipment in industrial and mining enterprises, labs and scientific research institutions include drying, melting, baking and sterilization etc.

Characteristics

1.Cold rolling steel electrostatic spraying exterior; Stainless steel or cold rolling steel corrosion-resistant inner chamber.

2.Optional pointer meter or intelligent temperature controller with PID program and digital display, and with function of timing and over-temperature protection.

3. Door with double-layer tempered glass for clearly observation.

4.Door with silicon rubber seal ensures good sealability.

5.Low-noise fan enables long continuous working.

Specifications

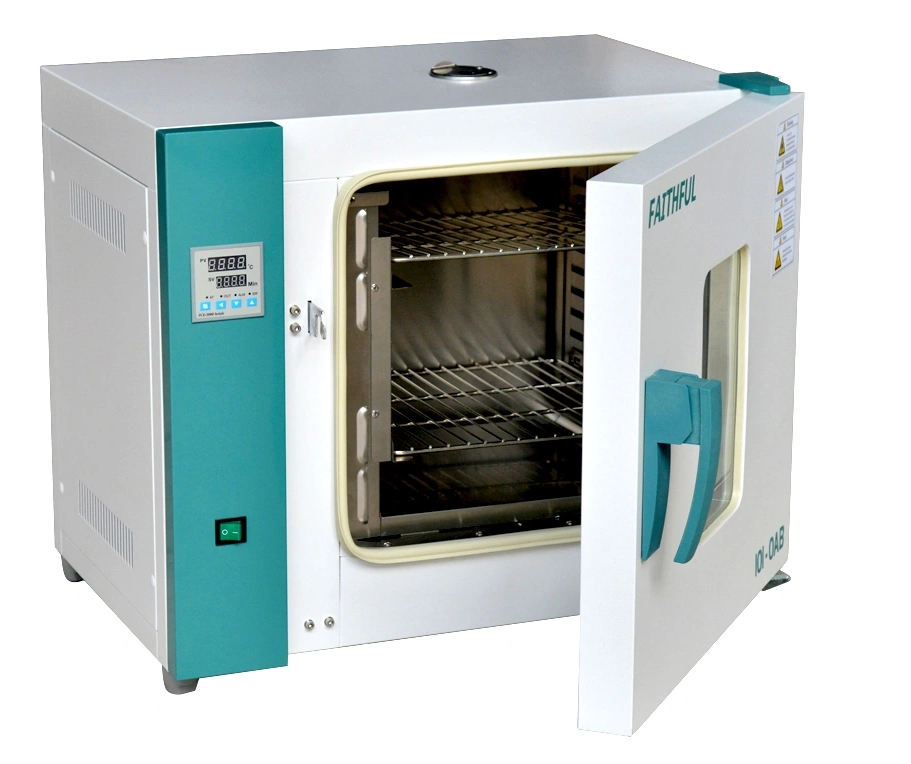

Model:101-0AB

Voltage:220V50Hz

Tem. range:Room Tem. +20~250

Tem. motion:± 1

Chamber Size(mm):350× 350× 350

Product Size(mm):650× 510× 525

Packing size(mm):770× 630× 605

Power(Kw):1.2

Shelf load(Kg):15

N. W. (Kg):44

G. W. (Kg):56
