Analyzers & Analytical Instruments

Highlights

• Visual Grading of Oils & Fats
• Approved by the American Oil Chemists Society (AOCS)
• Measures According to AOCS Official Method Cc 13b-45

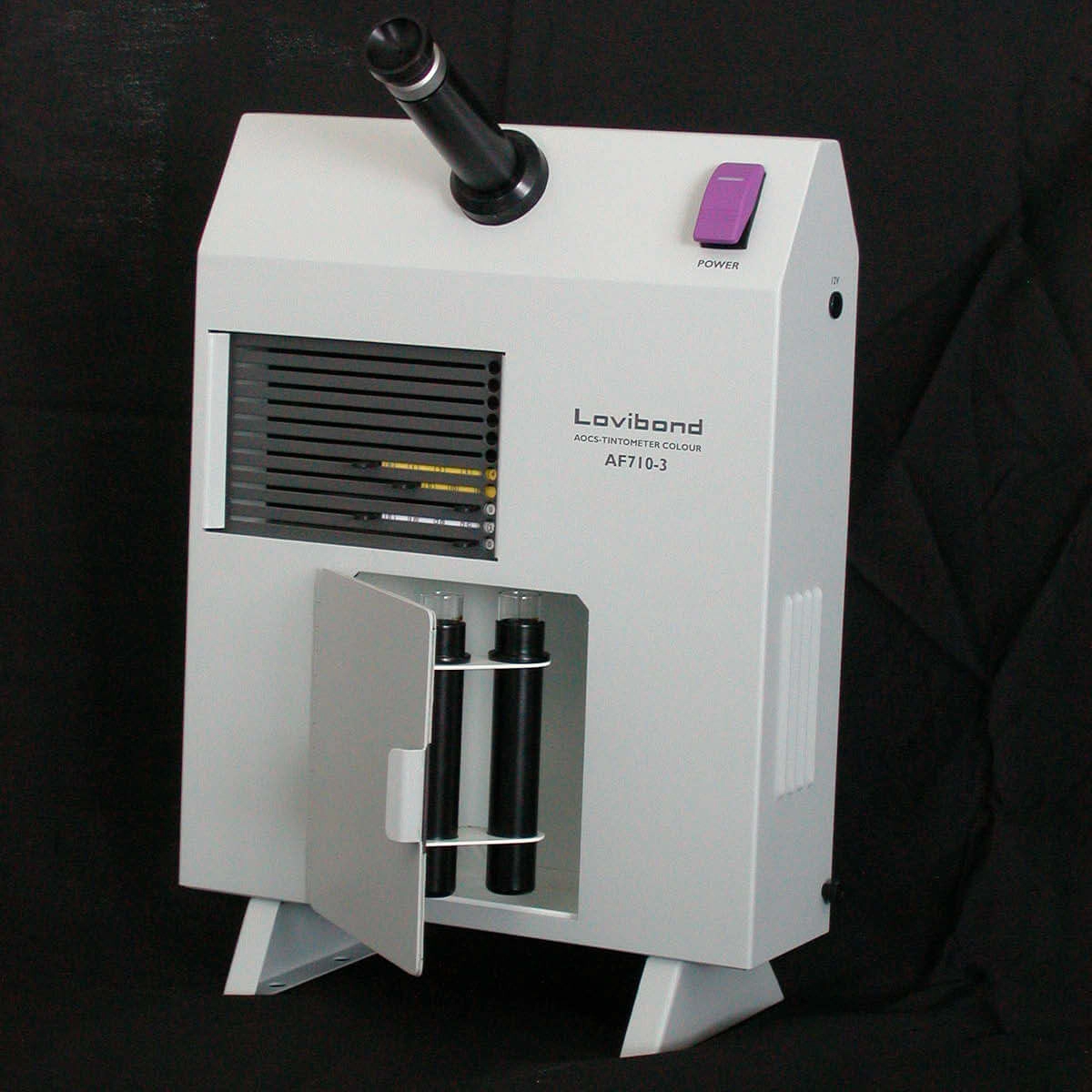

The AF710-3 is a visual instrument approved by the American Oil Chemists Society (AOCS) for colour grading of oils and fats according to AOCS Official Method Cc 13b-45, the Wesson Method.

Applications

• Edible Oils and Fats
•  Household Products
•  Petroleum Oils and Waxes
• Visual Colorimeter for AOCS Official Method Cc 13b-45, the Wesson Method
  The AF 710 is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of the AOCS-Tintometer® Colour Scale. The AOCS-Tintometer® Colour Scale is a special red and yellow version of the Lovibond® RYBN scale using the AOCS-Tintometer® Red Scale (which is not the same as the Lovibond® standard red scale). The AF 710-3 accommodates the special flat-bottomed glass sample tubes specified in the AOCS Official Method Cc 13b-45, which are marked to indicate an oil column of 1/2", 1" and 5¼".
• International Standards Approval
  The Lovibond® AF 710-3 is a visual instrument approved by the American Oil Chemists Society (AOCS) for colour grading of oils and fats.
• Easy Determination of Colour
  You can easily measure the colour of the sample by comparing light transmitted through a column of oil with that transmitted through a series of red and yellow glasses calibrated in accordance with the AOCS-Tintometer® Colour Scale. The glasses are varied until a colour match is found for the light passing through the oil. You can then express this colour in units of red and yellow.
• No Excessive Ambient Light
  The tube holder, which prevents light from entering the sides of the tubes, houses two tubes, one containing the sample and the other allowing an equal
  amount of light to reach the colour glasses.

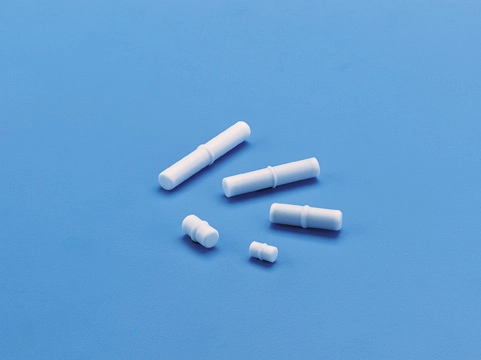

These stirbars have multifaceted surfaces that add turbulence
relative to similar smooth size cylindrical bars. Center molded
pivot ring minimizes the contact area between the bar and
the vessel; reduces friction and chattering. PTFE/ALNICO V
Magnet.

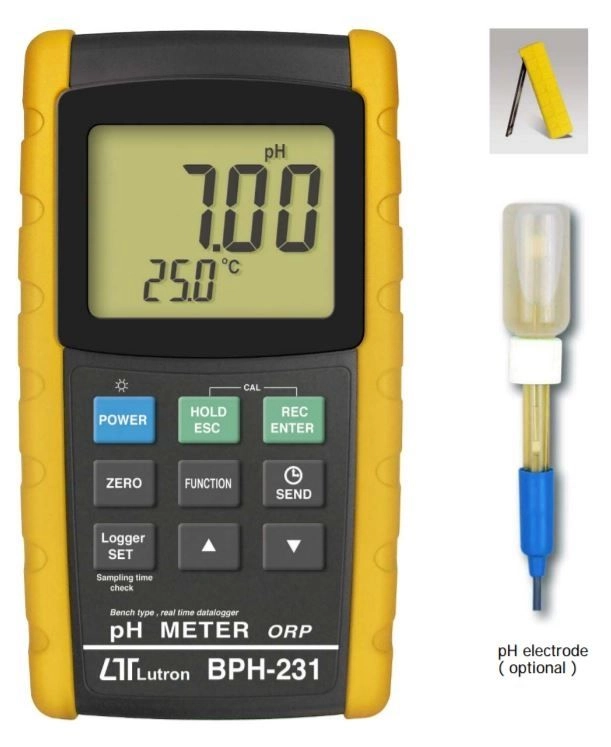

--Professional bench type meter with large LCD display with green color backlight, easy reading.

--pH and mV (ORP). pH : 0 to 14.00 pH, ORP : 1999 mV.

--pH measurement can select ATC or manual Temp. adjustment.

--High input impedance.

--Auto calibration for pH 7, pH 4 and pH 10 or other value.

--Real time data logger (record year, month, date, hour, minute, second), 16,000 data logger.

--Wide sampling time adjustment.

--Auto data logger, manual data logger.

--RS232/USB computer interface.

--Data hold, Record (Max., Min.).

--It can defult auto power off or manual power off.

--DC 1.5V (UM-3, AA) x 8 PCs or DC 9V adapter in.

Circuit

--Custom one-chip of microprocessor LSI circuit

Display

--LCD size : 82 mm x 61 mm

Measurement

--pH , mV (ORP)

pH Electrode

--Optional, Any pH electrode with BNC connector.

Measurement

--pH: 0 to 14 pH

--mV : -1999 mV to 1999 mV

Input Impedance

--10^12 ohm

Temperature Compensation for pH measurement

--Manual: 0 to 100 Degree Celcius , be adjusted by push button on front panel.

--Automatic(ATC): With the optional temperature probe ( TP-07 ) 0 to 65 . ?

pH Calibration

--pH7, pH4, and pH10, 3 points calibration ensure the best linearity and accuracy.

Sampling Time of Data Logger

--Auto data logger : 1 sec to 8 hour 59 min. 59 sec.

--Manual data logger : Set sampling time to 0 second.

Data Hold

--Freeze the display reading.

Memory Recall

--Maximum & Minimum value.

Sampling Time of display

--Approx. 1 second.

Power off

--Auto shut off saves battery life or manual off by push Button.

Data Output

--RS 232/USB PC computer interface.

Operating Temperature

--0 to 50 . - Main instrument.

Operating Humidity

--Less than 80% R.H

Power Supply

--DC 1.5 V battery ( UM3 ) x 8 PCs

--DC 9V adapter input

Power Consumption

--Operation ( LCD backlight ON ) : Approx. DC 23 mA

--Operation ( LCD backlight OFF ) : Approx. DC 8 mA

-- Power OFF ( only internal clock running ) : Approx. DC 1.8 uA

Weight

--1049 g/2.3 LB

Dimension

--225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )

Accessories Included

--Instruction manual...........................1 PC

• Enables Sample Measurements from a Distance
• Eliminates Surface Distortion
• Simplifies Measurements of Two & Three Dimensional Objects
• Additional Mounting Stand for Accurate Height Adjustments

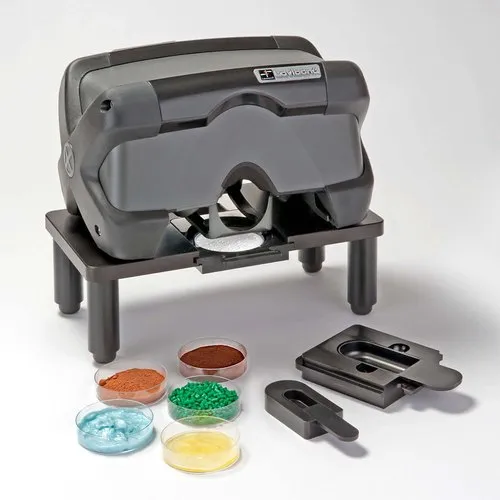

The Lovibond® NC 45 Non Contact 45/0º geometry benchtop spectrophotometer is designed for the colour measurement of many types of wet and dry samples including powders, pastes, gels, plastics and paints. The versatile form factor also simplifies measurements on two and three dimensional objects. The NC 45 utilizes LED illumination, ensuring efficient robust functionality and reliable performance.

--Professional bench type meter with large LCD display with green color backlight, easy reading.

--pH and mV (ORP). pH : 0 to 14.00 pH, ORP : 1999 mV.

--pH measurement can select ATC or manual Temp. adjustment.

--High input impedance.

--Auto calibration for pH 7, pH 4 and pH 10 or other value.

--Real time data logger (record year, month, date, hour, minute, second), 16,000 data logger.

--Wide sampling time adjustment.

--Auto data logger, manual data logger.

--RS232/USB computer interface.

--Data hold, Record (Max., Min.).

--It can defult auto power off or manual power off.

--DC 1.5V (UM-3, AA) x 8 PCs or DC 9V adapter in.

Circuit

--Custom one-chip of microprocessor LSI circuit

Display

--LCD size : 82 mm x 61 mm

Measurement

--pH , mV (ORP)

pH Electrode

--Optional, Any pH electrode with BNC connector.

Measurement

--pH: 0 to 14 pH

--mV : -1999 mV to 1999 mV

Input Impedance

--10^12 ohm

Temperature Compensation for pH measurement

--Manual: 0 to 100 Degree Celcius , be adjusted by push button on front panel.

--Automatic(ATC): With the optional temperature probe ( TP-07 ) 0 to 65 . ?

pH Calibration

--pH7, pH4, and pH10, 3 points calibration ensure the best linearity and accuracy.

Sampling Time of Data Logger

--Auto data logger : 1 sec to 8 hour 59 min. 59 sec.

--Manual data logger : Set sampling time to 0 second.

Data Hold

--Freeze the display reading.

Memory Recall

--Maximum & Minimum value.

Sampling Time of display

--Approx. 1 second.

Power off

--Auto shut off saves battery life or manual off by push Button.

Data Output

--RS 232/USB PC computer interface.

Operating Temperature

--0 to 50 . - Main instrument.

Operating Humidity

--Less than 80% R.H

Power Supply

--DC 1.5 V battery ( UM3 ) x 8 PCs

--DC 9V adapter input

Power Consumption

--Operation ( LCD backlight ON ) : Approx. DC 23 mA

--Operation ( LCD backlight OFF ) : Approx. DC 8 mA

-- Power OFF ( only internal clock running ) : Approx. DC 1.8 uA

Weight

--1049 g/2.3 LB

Dimension

--225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )

Accessories Included

--Instruction manual...........................1 PC

• Reduced Cost & Carbon Footprint
• Guarantees Instrument is Fully Calibrated to ISO 17025 Certified Standard
• Results Compared to Master Data at UKAS Accredited, ISO 9001 : 2008 Qualified Centre
• Certificate of Calibration Provided on Successful Completion

Colour measurement instruments need regular checking with calibration standards to ensure correct operation and compliance to established international standards. Being able to do this on-site, saves costs and carbon footprint and means you are never without your instrument.

--Measuring Range : 1 to 13 pH ( typical 0 to 14 pH ).

--Measuring Temperature : 5 to 60 ( 41 to 140 ).

--Electrode Structure : Combination type.

--Zero Potential for 7 ± 1 pH.

--Body Material : Epoxy.

--Build the Temp. sensor ( thermistor ), used for ATC ( automatic Temp. compensation ).

• Guaranteed site-to-site comparability with accurate and precise spectrophotometry
• Avoid inconsistent readings with controlled sample temperature
• Ensure measurement consistency with easy to clean, removable sample chamber
• Save benchtop space in your QC laboratory with a smaller instrument footprint

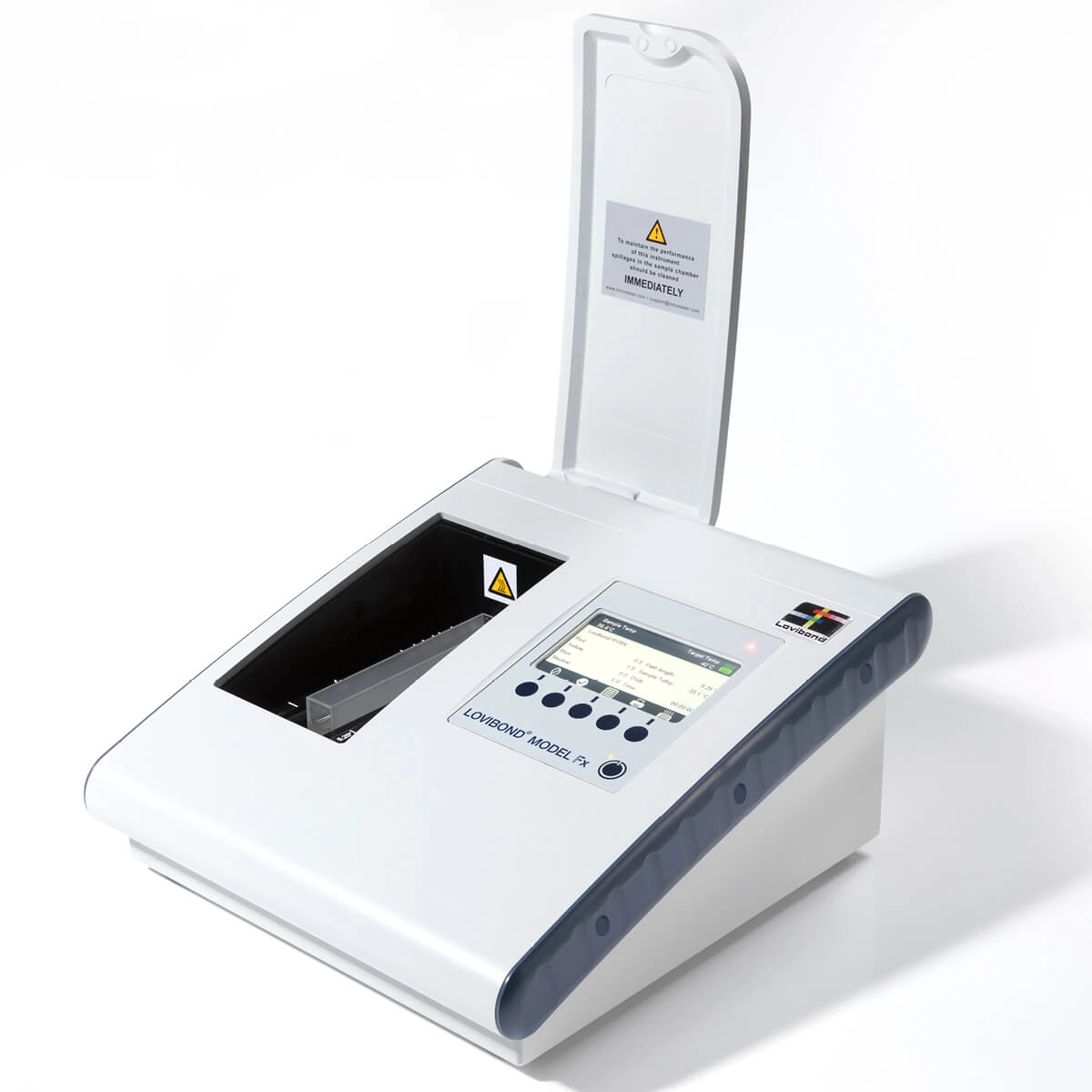

The Lovibond® Model Fx solves the temperature problems associated with consistently measuring the colour of edible oils and addresses the need for quickly delivering accurate results. Misreading from crystallisation can be eliminated with its ability to keep the oil at a constant temperature and report the temperature of the sample.

Applications

• Edible Oils and Fats

Hanon UV-VIS Spectrophotometer series, all components of the optical system fixed on the strengthened and thickened bottom plate to eliminate the deformation of plate or vibration of external affecting optical system accuracy. The light source of optical system, detector and core components are all top-level.

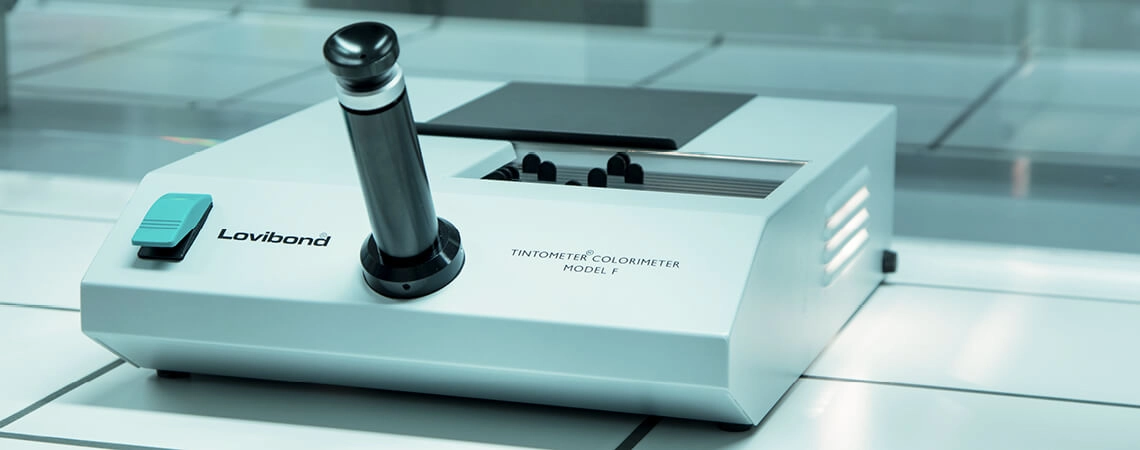

The Model F is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of Lovibond® Red, Yellow, Blue and Neutral. It is available in slightly varying formats to meet the requirements of different applications and the national and international standardising bodies which specify the instrument in their official methods for colour measurement.

Applications

• Beer, Malts and Caramels
•  Chemicals
•  Edible Oils and Fats
•  Food and Beverage
•  Household Products
•  Petroleum Oils and Waxes

Product Description

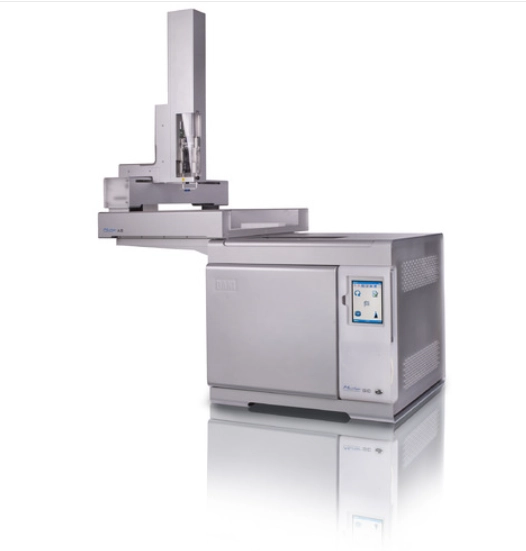

The Dani Master GC offers a new approach to the world of gas chromatography and it’s able to dramatically decrease sample run times in a wide range of GC applications. Faster than a conventional GC, Dani Master GC increases your  analytical productivity with an excellent sensitivity. Modular design of system components lets you quickly change orupgrade GC configurations with ease.
A complete accessibility of the entire system allows a simplermaintenance and an effective cost reduction. Dani Master GC allows up to three injection units and threedetectors mounted simultaneously. An intuitive Touch Screen interface controls both the GC and ASwith an ultimate simplicity.

Interested in this product?Get Latest Price from the seller

Product Image

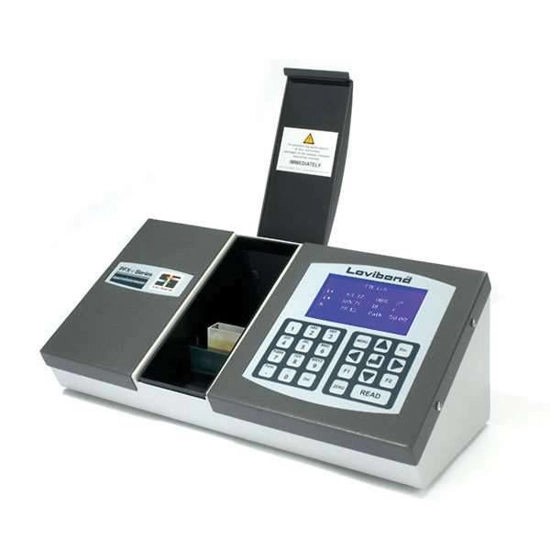

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology. You can benefit from the capability for remote calibration and servicing via the internet - saving the cost and time associated with servicing and guaranteeing compliance with standards.

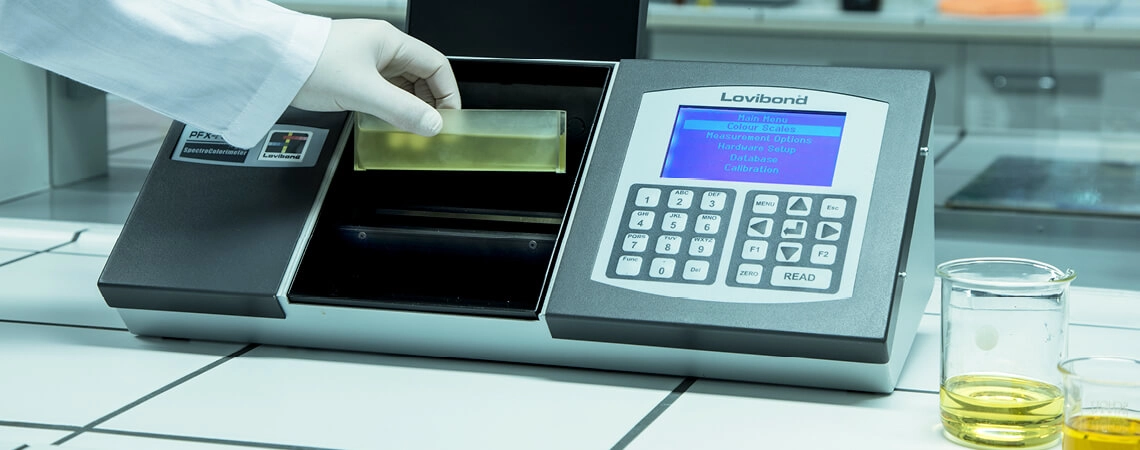

The PFXi-880/950/995 series ensure high precision results from the 16 filter wavelength technology. With an extended path length capacity of up to 6" (153 mm) and an optional heater to sustain the temperature of the sample to +10°C above its "cloud point", they meet the demand for consistent and reliable colour data for a wide range of samples.

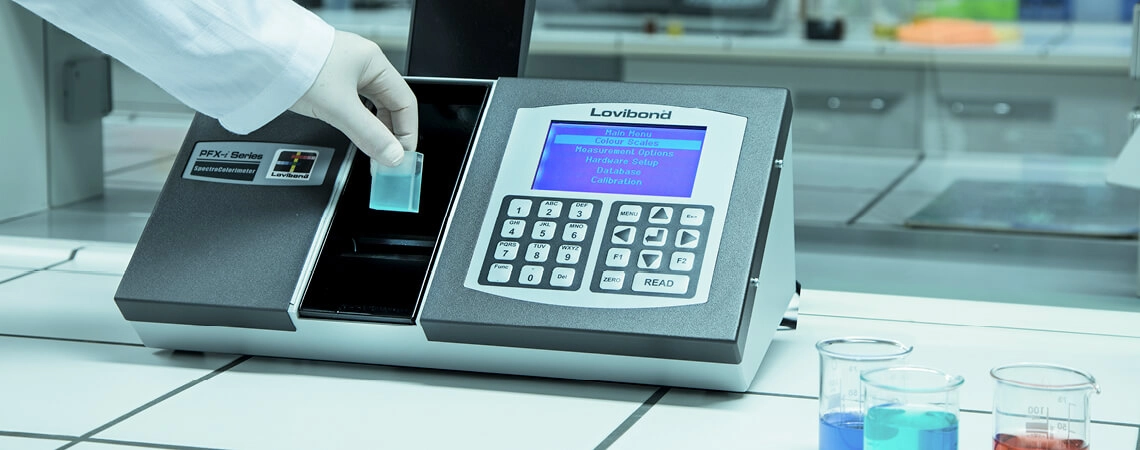

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology. You can benefit from the capability for remote calibration and servicing via the internet - saving the cost and time associated with servicing and guaranteeing compliance with standards.

The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time.

Note: When dealing with materials such as fats and waxes whose temperature needs to be maintained at a constant temperature +10°C above the "Cloud Point" of the material, the PFXi-880, -950 & -995 series should be considered. These are available with an additional critical feature, an optional integrated heater unit.

Applications

• Beer, Malts and Caramels
•  Chemicals
•  Coatings
•  Edible Oils and Fats
•  Food and Beverage
•  Household Products
•  Petroleum Oils and Waxes
•  Pharmaceuticals and Cosmetics
•  Plastics
•  Sugar Solutions, Syrups and Honey
•  Textiles

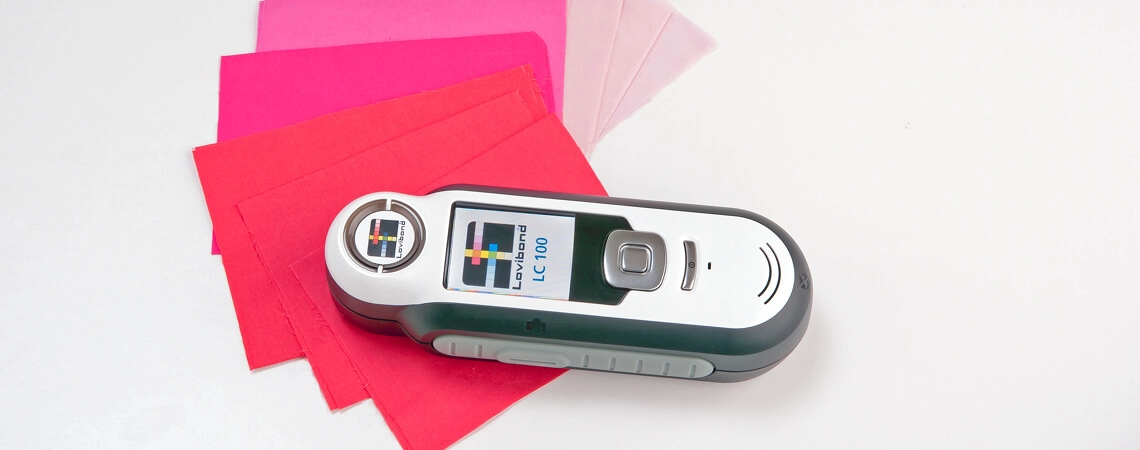

The Lovibond® LC 100 & SV 100 spectrocolorimeters offer fast, accurate and precise colour measurement. Designed to fit comfortably in your hand and small enough to place in your pocket the LC 100 will deliver consistent colour measurement, wherever and whenever you require it. The SV 100 offers the added benefit of an ergonomically designed holder to add to the flexibility of this extremely popular series of spectrocolorimeter.
