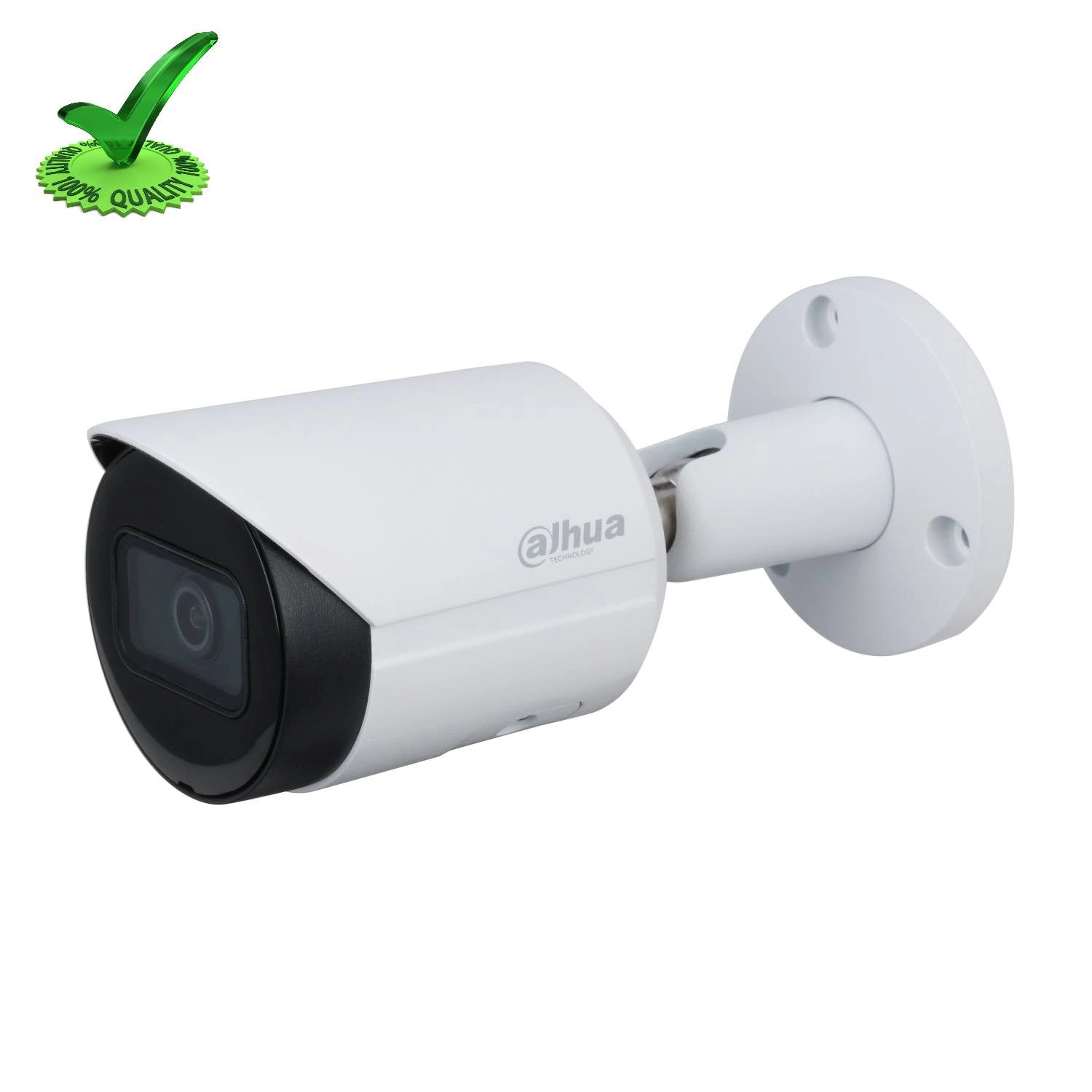

Dahua - 2MP Lite IR Fixed-focal Bullet Network Camera-DH-IPC-HFW2230SP-S-S2

Available

Category: Consumer Electronics

Subcategory: CCTV, Surveillance Systems and Parts

Brand: Dahua Network Camera

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30 IRE) 0.0005 Lux@F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6 3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 107° Vertical: 56° Diagonal: 127° 3.6 mm: Horizontal: 88° Vertical: 44° Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.3 m (4.27 ft)

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

IPC-HFW2230S-S-S2

2MP Lite IR Fixed-focal Bullet Network Camera

> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2MP (1920 × 1080) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire.

> Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Max. 256 G micro SD card.

> 12V DC/PoE power supply.

> IP67 protection.
