Category: Consumer Electronics
Subcategory: CCTV, Surveillance Systems and Parts
Brand: Dahua Network Camera
Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Category
CCTV > IP Dome Cameras
Model Code
DH-IPC-HDBW2231RP-ZS-S2
Chip Inch Size
1/2.8 inch
Colour Type
Colour / Monochrome
Resolution TVL
2MP
Megapixel
Yes
Sensitivity lux
0.002
Indoor/Outdoor
Outdoor
Mount Type
Wall, Pole, In-Ceiling, Ceiling mount
Electrical Specifications
Voltage: 12 V DC, PoE<br>Power Consumption: < 6.4W
Focal Length
2.7 ~ 13.5 mm
Compression
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Back Light Compensation
Yes
Auto Gain Control
Yes
White Balance
Yes
Electronic Shutter Range
Auto/Manual 1/3 s–1/100000 s
S/N Ratio dB
> 56
Signal Mode
PAL
Physical Specifications
Dimensions (mm): 122 x 89<br>Weight (g): 470
Environmental Specifications
Operating Temp (°C): -30 ~ +60 (-22 ~ +140 °F)<br>Operating Humidity (%): < 95<br>Protection: IP67, IK10
System Requirements
Web Browser: IE, Chrome, Firefox
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

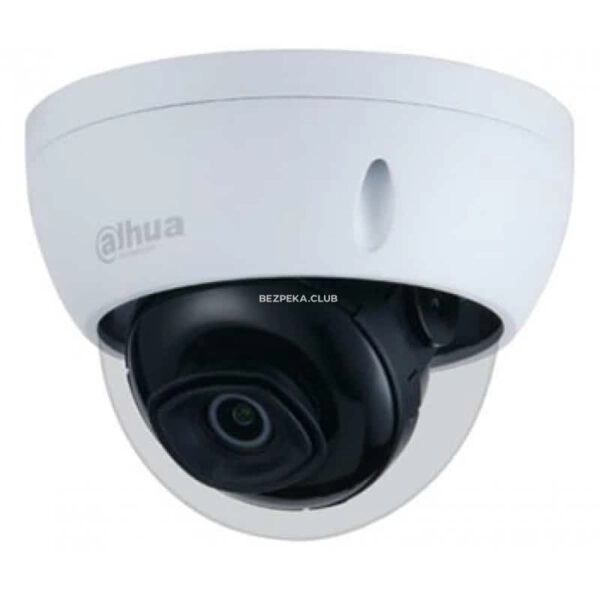

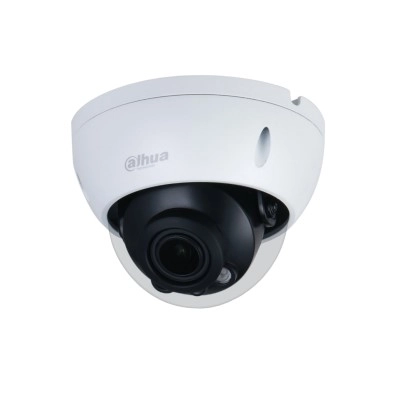

The Dahua 2MP Lite IR Vari-focal Dome Network Camera (Model DH-IPC-HDBW2231RP-ZS-S2) is designed for outdoor surveillance with a robust and versatile performance. Featuring a 1/2.8" progressive scan CMOS sensor, it delivers high-definition 2MP resolution with a sensitivity of 0.002 lux, ensuring clear visibility even in low-light conditions. The camera's motorized vari-focal lens (2.7 ~ 13.5 mm) allows for flexible focal adjustments, providing a wide range of view from 109° to 28° in the horizontal plane. Equipped with built-in IR LEDs, it offers an IR distance of up to 40 meters for enhanced night surveillance. The camera supports multiple compression standards including H.265, H.264, and MJPEG, enabling efficient video storage and transmission. It also features advanced technologies such as Smart H.264+/H.265+, WDR, 3D NR, HLC, and BLC for optimal image quality in various lighting conditions. Additional features include intelligent detection for intrusion and tripwire, and support for up to 256 GB Micro SD card for local storage, making it ideal for comprehensive security applications. With IP67 and IK10 ratings, this camera is built to withstand harsh outdoor environments.
