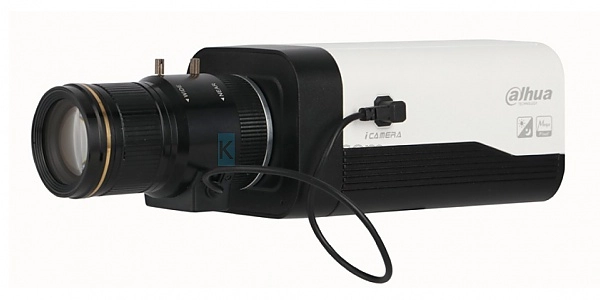

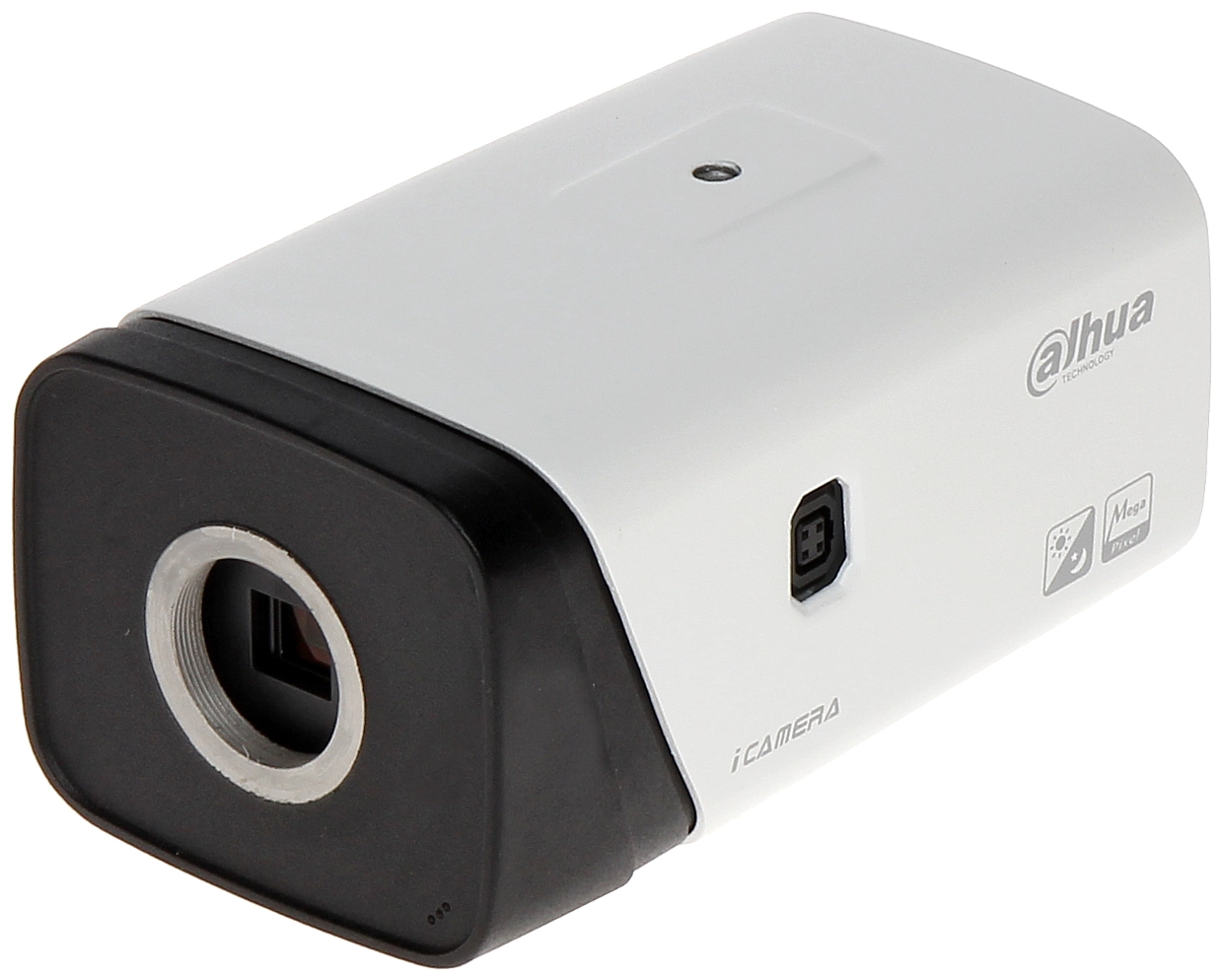

DAHUA IP CAMERA DH-IPC-HF81230EP-E 12.0 Mpx

Sensor

1/1.7" Progressive Scan CMOS

Matrix Size

12.0 Mpx

Resolution

4000 x 3000 - 12.0 Mpx, 1920 x 1080 - 1080p, etc.

Video Output

1 Vpp / 75 ?

Auto Iris Socket

DC

Min. Illumination

0.05 Lux (color) / F1.2, 0.005 Lux (B/W) / F1.2

S/N Ratio

> 50 dB

Image Compression

H.265 / H.265+ / H.264 / H.264+ / MJPEG

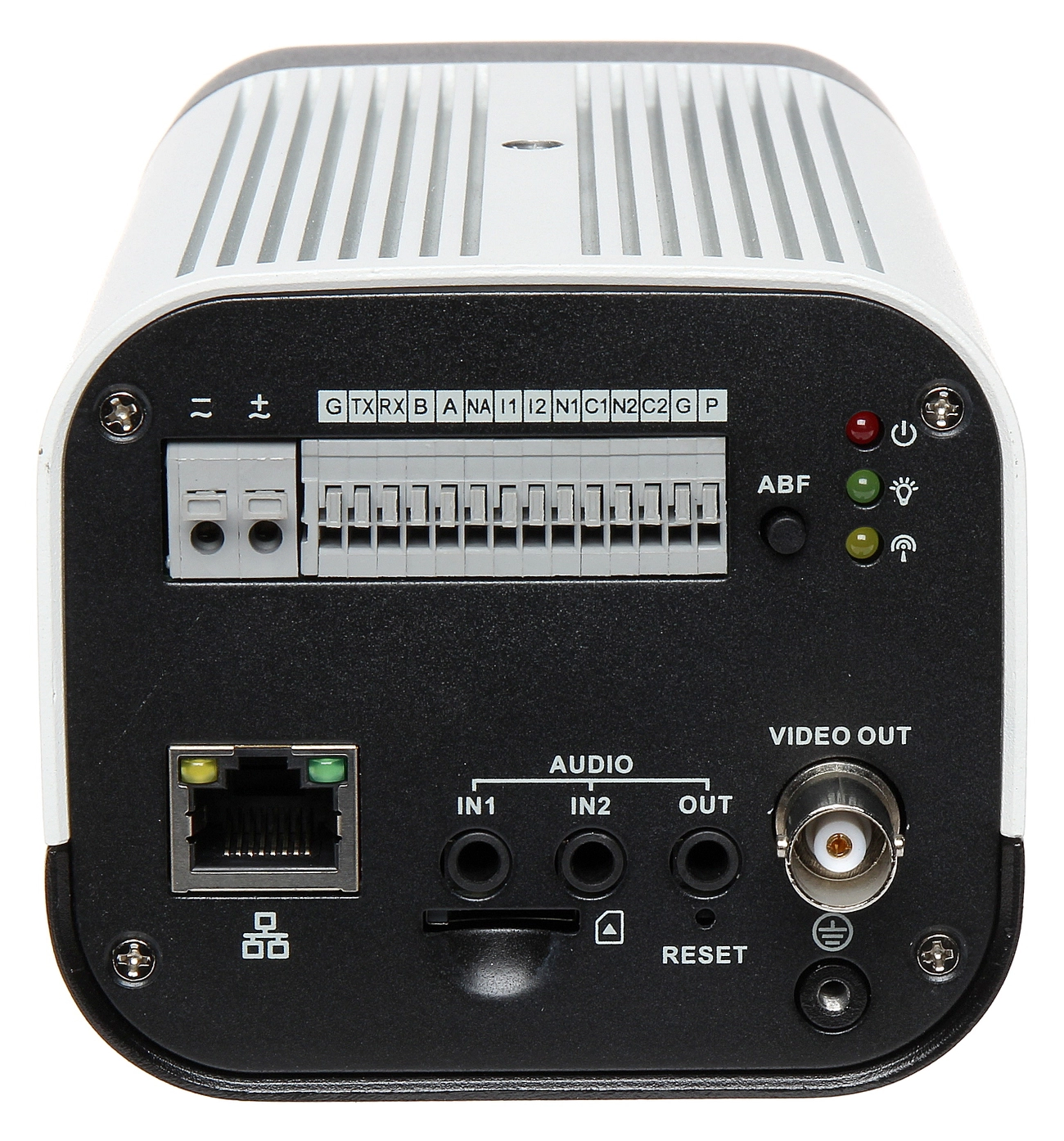

Alarm Inputs/Outputs

2 / 1RS-485 Interface

Protocols

TCP/IP, HTTP, HTTPS, RTSP, UDP, SNMP, etc.

Bitrate

14 kbps ... 9984 kbps (H.265), 24 kbps ... 16384 kbps (H.264)

Main Stream Frame Rate

20 fps (12.0 Mpx), 25 fps (8.0 Mpx)

Network Interface

100/1000 Base-T (RJ-45)

Audio

Built-in microphone, External microphone input, Audio output

Web Server

Built-in, NVR compliance

Max. Online Users

20

ONVIF

16.12

Memory Card Slot

microSD, up to 128 GB

Mobile Support

Android and iOS applications

Default IP Address

192.168.1.108

Default Admin User/Pass

admin / -

Web Browser Ports

80, 37777

PC Client Ports

37777

Mobile Client Ports

37777

RTSP URL

rtsp://admin ?o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

Main Features

EIS, D-WDR, 3D-DNR, ROI, F-DNR, BLC, HLC, AGC, ABF, ICR, Day/Night mode, Motion Detection, Privacy Zones, Audio detection, Mirror, Sharpness, Heat map, IVS analysis

Power Supply

ePoE, PoE (802.3af), 12 V DC, 24 V AC

Power Consumption

< 8 W

Housing

BOX, Metal

Color

White

Operation Temp

-30°C ... 60°C

Weight

0.55 kg

Dimensions

135 x 74 x 65 mm

Manufacturer/Brand

Dahua

Supported Languages

Polish, English, Bulgarian, Czech, Danish, Finnish, Greek, Norwegian, Swedish, Hungarian

Guarantee

3 years
