DH-PFM920I-6UN-N- UTP CAT6 Cable


Minimum Order Quantity: 1 PCS


Material

OFC (Oxygen Free Copper)

Structure

4P * 0.53 ± 0.01mm

Material

HDPE

Min. Average Thickness

0.21mm

Diameter

0.95mm ± 0.05mm

Material

PVC

Min. Average Thickness

0.40mm

Diameter

6.0 ± 0.50mm

Surface

Smooth, full and tight

Color

White/Grey

Length

305m (1000.66ft)

N.W.

11.25kg (24.8lb)

Packaging Dimension

412mm x 412mm x 215mm (16.22” x 16.22” x 8.46”)

Weight (with Packaging)

12.75kg (28.11lb)

Insulation Tensile Strength

≥16MPa

Elongation at Break

≥300%

Peeling Property (Insulation)

No damage to insulation or conductor

Jacket Tensile Strength

Before aging: ≥13.5MPa; After aging: ≥12.5MPa

Elongation at Break (Jacket)

Before aging: ≥150%; After aging: ≥125%

Aging Condition

100°C * 24h * 7d

Peeling Property (Jacket)

No damage to insulation, cold bending (-20°C * 4h),outer diameter of the cable is 8 times, without cracking.

DC Resistance

≤9.38Ω/100m

Max. Unbalance Rate

≤5%

Time Delay

≤45ns/100m

Max. Mutual Capacitance

5.6nF/100m

Min. Insulation Resistance

≥5000MΩ·km


T

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

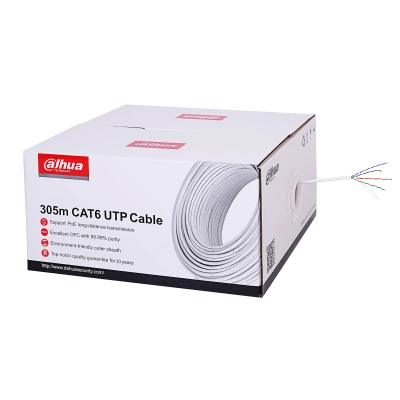

305m UTP CAT6 Cable

>305m UTP CAT6;
>Support PoE long-distance transmission;
>Excellent OFC with 99.99% OFC(oxygen free copper) purity;
>Environmentally-friendly outer sheath;
>Top-notch quality guarantee for 10 year
