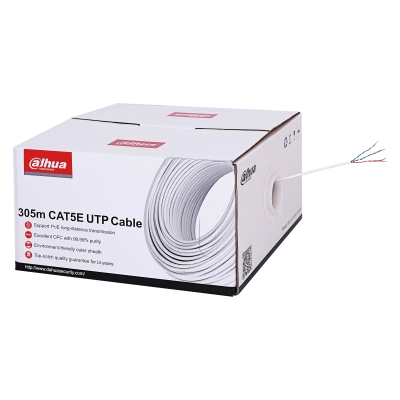

DH-PFM920I-5EUN-N-305m UTP CAT5E Cable

Max. Attenuation

22 dB/100m (100MHz)

Material

OFC (Oxygen Free Copper)

Composition

1/0.45

Wire Gauge

0.45 * 4P ± 0.01mm

Material

HDPE

Min. Average Thickness

0.2mm

Diameter

0.83mm ± 0.03mm

Color (4 Pairs)

Orange, White/Orange; Green, White/Green;Blue, White/Blue; Brown, White/Brown Jacket

Min. Average Thickness

0.5mm ± 0.1mm

Diameter

4.7mm ± 0.2mm

Color

White

Length

305m (1000.66ft)

Max. DC Resistance of Single Conductor

≤12 Ω/100m

Max. Unbalance Rate of Line Pairs’

≤12%

Min. Insulation Resistance

≥5000MΩ·km

Max. Mutual Capacitance

5.6nF/100m
