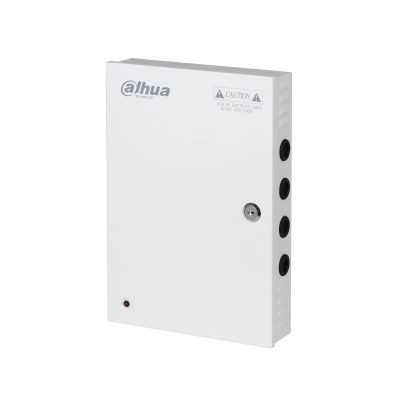

Dahua-CCTV Distributed Power Supply box-DH-PFM343-19CH

Available

Category: Consumer Electronics

Subcategory: CCTV, Surveillance Systems and Parts

Brand: Dahua Accessories

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Model

DH-PFM343-19CH

Input Voltage Range

AC90~264V

Outputs

19 x 12VDC (-3%~+7%)

Max. Output

20A, 240W

Output Protection

19 replacement fuses, max. per output 3A

Efficiency

87%

No Load Power Consumption

<0.21W

Internal ON/OFF Switch

Yes

LED Output Indicator

Yes

Surge Protection

Line to ground: 4000V; Line to line: 2000V

ESD Protection

Contact discharge: 6000V; Air discharge: 8000V

Working Temperature

-20°C ~ +45°C (-4°F ~ +113°F)

Working Humidity

<90% RH

Weight

2.52kg (5.56lb)

Dimension (LxWxH)

315mm x 215mm x 53mm (12.4” x 8.46” x 2.09”)

Installation

Wall mount

Color

White

Safety Standards Certification

CE (EN55032, EN55020); FCC (FCC Part 15 Class B, ISED ICES-003 Issue 6)

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

CCTV Distributed Power Supply box

> 19 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
> Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
> High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
> With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
> Professional wall-mounted installation with reserved outlet holes, convenient and flexible.
