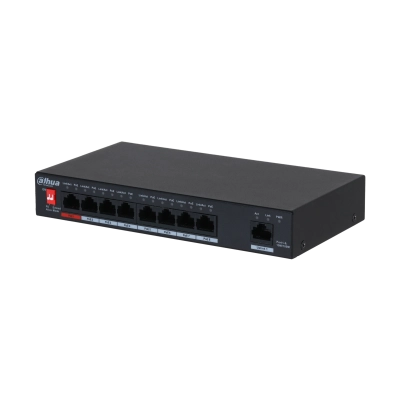

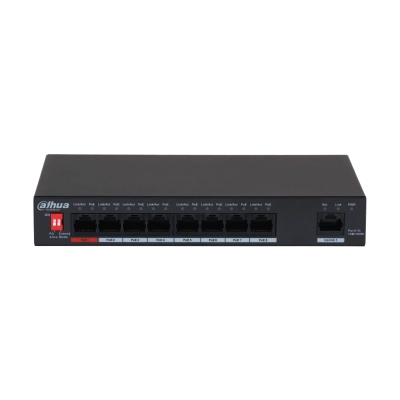

Port Unmanaged Desktop Switch with 8 Port PoE-PFS3009-8ET-96 9-

PoE Watchdog

Yes

Static Protection

Air: 8kV, Contact: 6kV

Lightning Protection

Common: 4kV, Differential: 2kV

Net Weight

0.49 kg (1.08 lb)

Dimensions

190 x 100 x 30 mm (7.48" x 3.94" x 1.18")

Casing Material

Iron

Installation

Desktop, Wall mount

Certifications

CE, FCC

Ethernet Ports

8 x RJ-45 10/100 Mbps (PoE),1 x RJ-45 10/100 Mbps (Uplink)

Optical Ports

0

PoE

Yes

PoE Power

96W

PoE Protocol

IEEE 802.3af/at, Hi-PoE, IEEE 802.3bt

Power Supply

External 48-57 VDC, 2-1.68A

Operating Temperature

-10°C to +55°C (14°F to 131°F)

Operating Humidity

5% to 95% RH

Power Consumption

Idling: 1.5W, Full load: 96W

Layer

Layer 2

Management

No (Unmanaged)

Switching Capacity

1.8 Gbps

Packet Forwarding Rate

1.34 Mpps

Packet Buffer Size

768 kbit

MAC Table Size

2K

Communication Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

Yes
