CH Passive Video Balun-DH-PFM800B-4K-1

Available

Category: Consumer Electronics

Subcategory: CCTV, Surveillance Systems and Parts

Brand: Dahua Accessories

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Transmission Signal

1-CH

Network Cable Type

UTP CAT5E/6 (CU material)

Transmission Properties

HDCVI, TVI, AHD

Video Transmission Properties

BNC-M Coaxial Connector

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP/5MP/4K

Protection

ESDIEC61000-4-2 Level 3

UTP Cable Connector

2KV (different-mode), 4KV (common-mode)

Impedance

BNC Male: 75 ohmsUTP Cable: 100 ohms

Physical Properties

Weight: 34g (0.07lb) per pair

Dimension (LxWxH)

TX: 173.8mm x 19.5mm x 21mmRX: 49.1mm x 19.5mm x 21mm

Shell Material

ABS

Environmental Conditions

Operating Temperature: -30°C to +70°COperating Humidity: <95% RHStorage Temperature: -40°C to +80°C

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

DH-PFM800B-4K

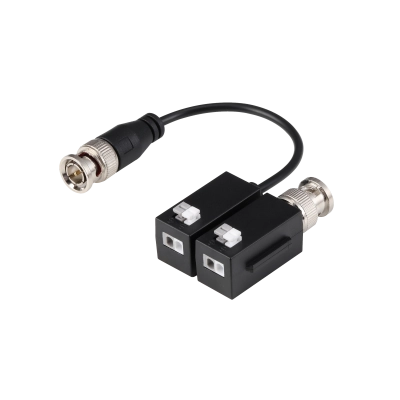

1-CH Passive Video Balun

> Real-time transmission over UTP CAT5E/6 cable;
> Passive, no need for power supply;
> Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS;
> With female BNC connector, and pluggable screw terminal connections.
