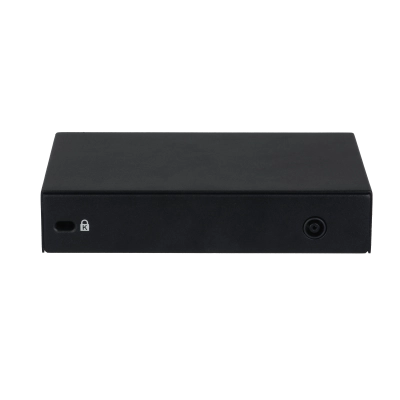

Dahua - PFS3006-4ET-36 6-Port Fast Ethernet Switch with 4-Port PoE

Data Transmission Port

4 PoE ports with 10/100 Mbps Base-TX,2 uplink ports with 10/100 Mbps Base-TX

Power Supply

AC100–AC240V

Operating Temperature

-10°C to +55°C (-14°F to 131°F)

Operating Humidity

10%–90%

Power Consumption

Idling: 0.5W,2 uplink ports with 10/100 Mbps Base-TX

PoE

PoE Budget: Port 1-4 ?30W, total ?36W

PoE Standard

IEEE802.3af, IEEE802.3at

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Performance

Switching Capacity: 1.2 Gbps,Packet Forwarding Rate: 0.89 Mpps

Jumbo Frame

2048 bytes

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

ESD: Air discharge: 8kV, Contact discharge: 6kV

Thunderproof

Common mode: 6kV, Differential mode: 4kV

Weights and Dimensions

Net Weight: 0.56 kg (1.23 lb)

Product Dimensions

194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38")

Packaging Dimensions

Packing box: 303 mm × 262 mm × 72 mm

Package

10 devices in one package

Certifications

CE: EN60950; FCC
