Category: Consumer Electronics
Subcategory: Router, Cables & Networking Devices
Brand: Dahua Transmission
Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Ethernet Ports
2 x 1000 Base-X (SFP),1 x 10/100/1000 Base-T (Hi-PoE/PoE+/PoE),3 x 10/100 Base-T (PoE+/PoE)
PoE Power Consumption
2 x 1000 Base-X (SFP),Port 4: ≤60W, Total: ≤96W
PoE Protocol
PoE (802.3af), PoE+ (802.3at), Hi-PoE
Switching Capacity
6.8Gbps
Packet Forwarding Rate
4.91Mpps
Packet Buffer Memory
1Mb
Operating Humidity
10% to 90%
Power Supply
DC 48V to 57V
Lightning Protection
Common Mode: 4KV,Differential Mode: 2KV
Operating Temperature
-30°C to 65°C
Weight
480g
Dimensions (W x D x H)
150mm x 100mm x 30mm
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

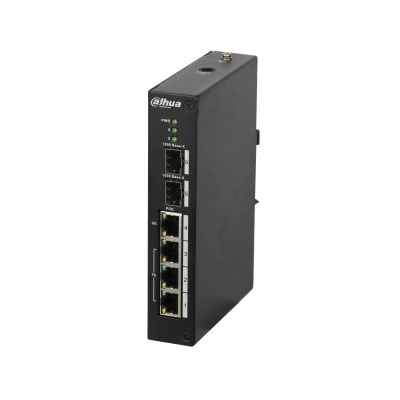

The DH-PFS4206-4P-96 is a high-performance PoE managed switch designed to power and connect a variety of PoE-enabled devices. With 2 SFP uplink ports for fiber connectivity and 4 PoE/PoE+ ports capable of delivering up to 30W per port, this switch offers a total PoE power budget of 96W. Ideal for powering IP cameras, wireless access points, and VoIP phones, the DH-PFS4206-4P-96 supports PoE (802.3af), PoE+ (802.3at), and Hi-PoE standards. Its compact and rugged metal housing, wide operating temperature range of -30°C to 65°C, and lightning protection make it suitable for reliable performance in diverse environments. The DH-PFS4206-4P-96 provides a flexible and efficient power distribution solution for surveillance, access control, and smart building systems.
