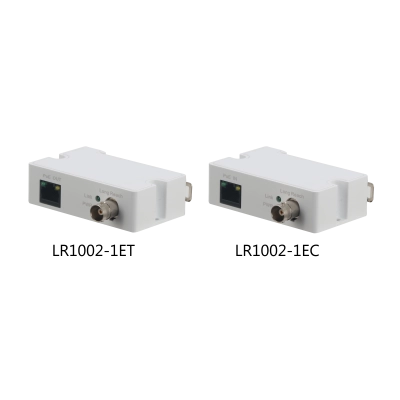

Single-Port Long Reach Ethernet over Coax Extender-LR1002-1ET/LR1002-1EC

Model

LR1002-1ET / LR1002-1EC

Function Port

1*10/100 Mbps Base-TX,1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable:400m/100Mbps, 1000m/10Mbps

PoE Protocol

48V Passive PoE (Pairs 1, 2+; 3, 6 Return)

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Lightning Protection

Common Mode 4KV,Differential Mode 2KV

Operating Temperature

–30°C to 65°C (–22°F to 149 °F)

Operating Humidity

5%–95%

Weight

61 g (0.13 lb)

Dimensions (W×D×H)

79 mm × 52 mm × 23 mm
