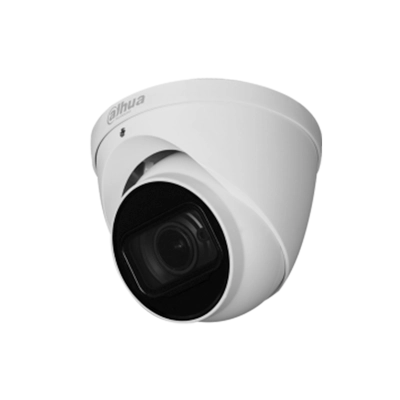

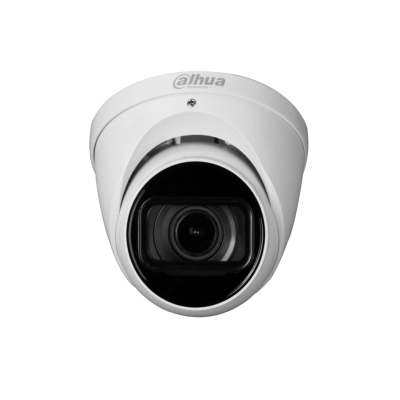

Dahua 5MP Starlight HDCVI POC IR Eyeball Camera-DH-HAC-HDW1500TP-Z-A

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s<br>NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°<br>Tilt: 0°–78°<br>Rotation: 0°–360°

Lens Type

Motorized vari-focal

Auto Focus

No

Mount Type

?14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

Diagonal: 39°–130°<br>Horizontal: 34°–107°<br>Vertical: 19°–55°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

Day/Night

Auto switch by ICR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

CE, FCC, UL

Audio Output

One channel built-in mic

Video Output

CVI/TVI/AHD/CVBS by one BNC port

Power Supply

PoC (only CVI)/12V±30% DC

Power Consumption

Max 6.6W (12V DC, IR on); PoC (AT)

Operating Temperature

–30°C to +60°C (–22°F to +140°F); <95% humidity

Storage Temperature

–30°C to +60°C (–22°F to +140°F); <95% humidity

Protection Grade

IP67

Casing

Metal throughout the whole casing

Camera Dimensions

?122 mm × 104.8 mm (?4.80" × 4.13")

Net Weight

0.57 kg (1.26 lb)

Gross Weight

0.72 kg (1.59 lb)
