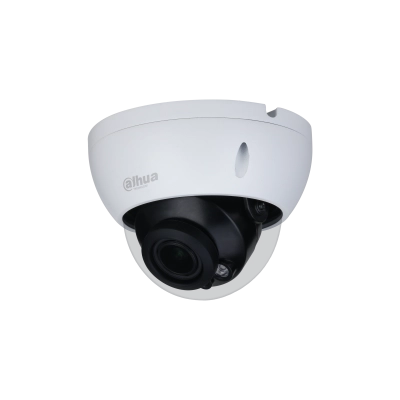

Dahua 2MP HDCVI IR Dome Camera-DH-HAC-HDBW1200RP-Z

mage Sensor

1/2.7 inch CMOS

Effective Pixels

1920 (H) × 1080 (V), 2MP

Min. Illumination

0.02Lux/F1.9, 0Lux IR on

IR Distance

30m (98.4 ft)

IR LEDs

12

Lens

Fixed-focal, 2.8 mm, 3.6 mm, F1.9

Field of View

2.8 mm: 119°x101°x54°, 3.6 mm: 100°x84°x45°

DORI Distance

2.8 mm: 38.6m/15.4m/7.7m/3.9m; 3.6 mm: 49.7m/19.9m/9.9m/5m

Frame Rate

CVI: 1080P@25/30fps; AHD/TVI: 1080P@25/30fps; CVBS: 960H

Video Output

CVI/TVI/AHD/CVBS

Day/Night

Auto switch by ICR

WDR

DWDR

Noise Reduction

2D NR

Smart IR

Yes

Power Supply

12V ±30% DC

Power Consumption

Max 3.4W (IR on)

Operating Temp.

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection

IP67, IK10

Dimensions

⌀109.9 mm × 81.0 mm (⌀4.33" × 3.19")

Weight

Net: 0.31 Kg (0.68 lb); Gross: 0.45 Kg (0.99 lb)
