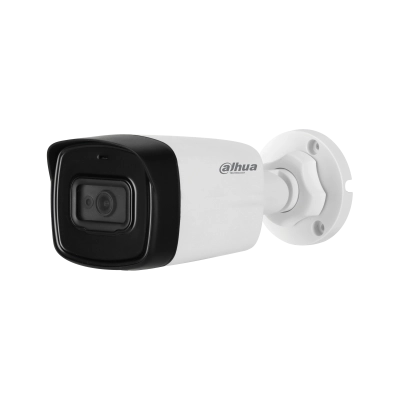

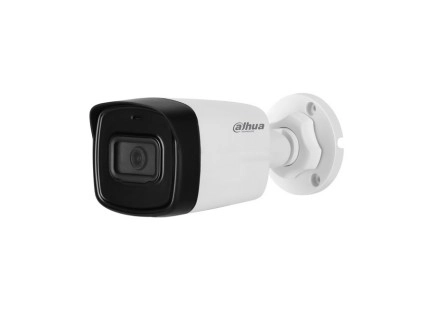

Dahua 2MP HDCVI IR Bullet Camera-DH-HAC-HFW1200TLP

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Shutter Speed

PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Min. Illumination

0.02Lux/F2.0, 30IRE, 0Lux IR on

Fill Light Working Distance

80 m (262.5 ft)

IR Control

Auto; Manual

IR LEDs

2

Pan/Tilt/Rotation

Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.9

Field of View

2.8 mm: 119° x 101° x 54°, 3.6 mm: 100° x 84° x 45°, 6 mm: 60° x 56° x 30°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.5 m (1.7 ft), 3.6 mm: 0.8 m (2.6 ft), 6 mm: 2 m (6.6 ft)

Video Output

CVI/TVI/AHD/CVBS via one BNC port

Frame Rate

CVI: 1080P@25/30fps; AHD: 1080P@25/30fps; TVI: 1080P@25/30fps; CVBS: 960H

Day/Night

Auto switch by ICR

BLC/WDR

BLC/HLC/DWDR, DWDR

White Balance

Auto; Manual

Gain Control

Auto; Manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas)

Certifications

CE, FCC, UL

Audio Output

One channel built-in mic (-A)

Power Supply

12V ±30% DC

Power Consumption

Max 4.9W (12V DC, IR on)

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% humidity (non-condensation)

Protection Grade

IP67

Casing

Metal front cover + plastic main body + plastic bracket

Dimensions

198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")

Net Weight

0.27 Kg (0.60 lb)

Gross Weight

0.40 Kg (0.88 lb)
