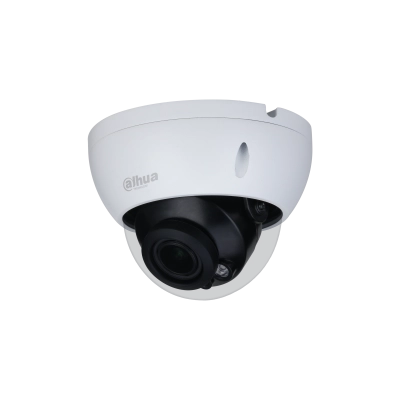

Dahua- DH-HAC-HDBW1400RP-Z

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2560(H)×1440(V), 4MP

Min. Illumination

0.02Lux/F1.7, 0Lux IR on

IR Distance

30m (98.4 ft)

IR LEDs

2

Lens

Motorized vari-focal, 2.7 mm-12 mm, F1.7

Field of View

Diagonal: 38°–127°, Horizontal: 33°–106°, Vertical: 19°–56°

DORI Distance

2.7mm: 58.7m/23.5m/11.7m/5.9m; 12mm: 177.8m/71.1m/35.6m/17.8m

Frame Rate

CVI: 4M@25/30fps; AHD/TVI: 4M@25/30fps; CVBS: 960H

Video Output

CVI/TVI/AHD/CVBS

Day/Night

Auto switch by ICR

WDR

DWDR

Noise Reduction

2D NR

Smart IR

Yes

Power Supply

12V ±30% DC

Power Consumption

Max 5.3W (IR on)

Operating Temp.

-30°C to +60°C (-22°F to 140°F); <95% (non-condensation)

Protection

IP67, IK10

Dimensions

⌀122.0 mm × 88.9 mm (⌀4.80" × 3.50")

Weight

Net: 0.44 Kg (0.97 lb); Gross: 0.7 Kg (1.54 lb)
