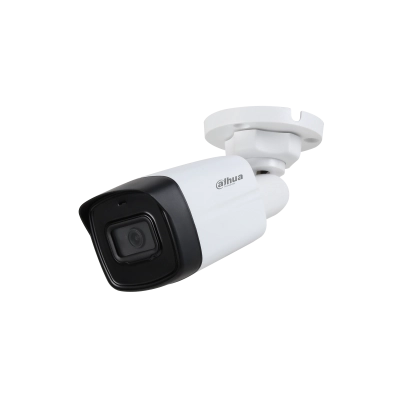

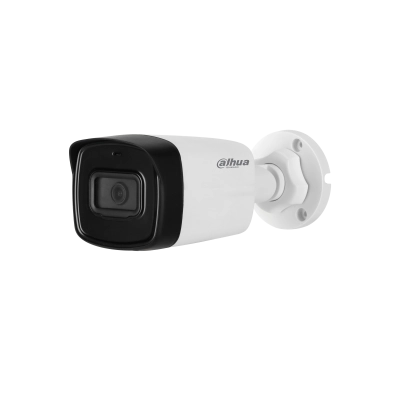

DH-HAC-HFW1400TLP / TP - 4MP HDCVI IR Bullet Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2560 (H) × 1440 (V), 4MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s

Minimum Illumination

0.02Lux/F2.0, 30IRE, 0Lux IR on

IR Distance

Up to 40m (131.2 ft)

IR On/Off Control

Auto; manual

IR LED Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F2.0; F2.0; F2.0

Field of View

2.8 mm: 125° × 105° × 56°3.6 mm: 104° × 87° × 47°,6 mm: 62° × 54° × 31°3.

Day/Night

Auto switch by ICR

Gain Control

Auto; manual

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

CE, FCC, UL

Video Output

CVI/TVI/AHD/CVBS

Power Supply

12V ±30% DC

Power Consumption

Max 3.1W (12V DC, IR on)

Operating Temperature

-40°C to +60°C (-40°F to 140°F)

Storage Temperature

-40°C to +60°C (-40°F to 140°F)

Protection Grade

IP67

Casing

Plastic throughout

Dimensions

198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")

Net Weight

0.23 Kg (0.50 lb)

Gross Weight

0.36 Kg (0.79 lb)
