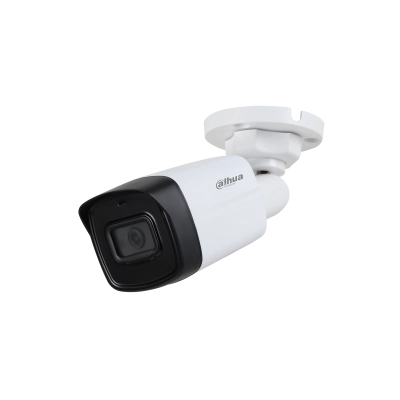

Dahua 4MP HDCVI IR Bullet Camera- DH-HAC-HFW1400TLP-A

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2560(H)×1440(V), 4MP

Scanning System

Progressive

Shutter Speed

PAL: 1/25s–1/100000s<br>NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Min. Illumination

0.02Lux/F2.0, 30IRE, 0Lux IR on

IR Distance

80 m (262.5 ft)

IR Control

Auto; manual

IR LEDs

2

Pan Range

0°–360°

Tilt Range

0°–90°

Rotation Range

0°–360°

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: 125° x 105° x 56°<br>3.6 mm: 104° x 87° x 47°<br>6 mm: 62° x 54° x 31°

Iris Type

Fixed iris

Close Focus Dist.

2.8 mm: 0.7m (2.3 ft)<br>3.6 mm: 1.1m (3.6 ft)<br>6 mm: 2.7m (8.9 ft)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

CE, FCC, UL

Audio Output

One channel built-in mic (-A)

Video Output

CVI/TVI/AHD/CVBS by one BNC port

Power Supply

12V ±30% DC

Power Consumption

Max 5.2W (12V DC, IR on)

Operating Temp.

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temp.

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Casing

Metal front cover + plastic main body + plastic bracket

Dimensions

198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")

Net Weight

0.27 Kg (0.60 lb)

Gross Weight

0.40 Kg (0.88 lb)
