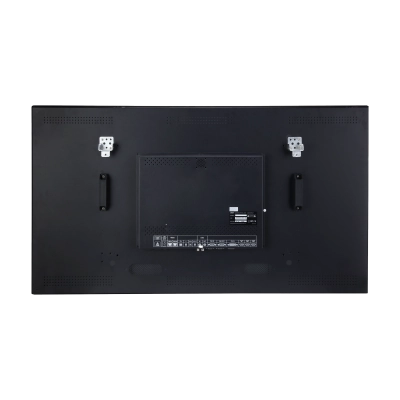

Dahua - LS490UCM-EF 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm)

Model

DHI-LS490UCM-EF

Diagonal Size

49" (16:9)

Panel Type

ADS

Resolution

1920×1080 (FHD)

Bezel Width

2.3mm (T/L), 1.2mm (B/R)

Backlight

Direct LED

Brightness

500 cd/m²

Contrast Ratio

1200:1

Pixel Density

46 dpi

Viewing Angle

H178°, V178°

Response Time

8ms

Color Depth

8bit (16.7M)

Color Temperature

10,000K

Surface Treatment

Haze 25%, 3H

MTBF

50,000h

Inputs

CVBS(BNC)×1, VGA(D-Sub)×1, DVI-D×1, HDMI×1, RS232×1, USB×2, Audio×1, IR×1

Outputs

CVBS(BNC)×1, RS232×1, HDMI×2, VGA×1, Audio×1

Power Supply

AC100V~AC240V, 50/60 Hz

Power Consumption (Standby)

<0.5W

Power Consumption (Typical)

135W

Power Consumption (Max.)

155W

Energy Efficiency Class (EU)

G

Installation Mode

Floor-standing, wall-mounted

VESA

600×400mm, M6

Control Mode

Infrared, RS232 dual mode, remote control by computer

Gross Weight

28.1kg (61.9 lbs)

Net Weight

19.5kg (43.0 lbs)

Dimensions (W×H×D)

1078.4mm×608.4mm×120.8mm (42.5"×24"×4.8")

Package Dimensions

1265mm×850mm×270mm (49.8"×33.5"×10.6")

Operating Temp.

0°C~+40°C

Humidity

10%RH~80%RH (non-condensing)
