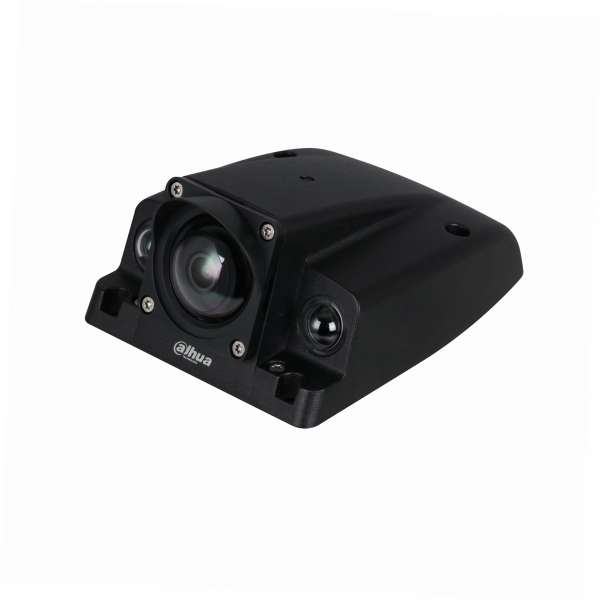

Dahua 2MP IR Mobile Network Camera- DH-IPC-MBW4231P-AS

Bit Rate Control

CBR/VBR

Pan/Tilt/Rotation

Pan: 0°~20°, Tilt: ±15°, Rotation: 0°~360°

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Intelligence

IVS: Tripwire, Intrusion, Object Abandoned/Missing<br>Advanced Intelligent Functions: Face Detection

Effective Pixels

1920(H) x 1080(V)

Video Compression

H.265+/H.265/H.264+/H.264

RAM/ROM

256MB/32MB

Streaming Capability

3 Streams

Scanning System

Progressive

Resolution

1080P(1920×1080), 1.3M(1280x960), 720P(1280×720), D1(704×576/704×480), VGA(640×480), CIF(352×288/352×240)

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Frame Rate

Main Stream: 1080P(150/60fps)<br>Sub Stream: D1(150/60fps)<br>Third Stream: 1080P(1~25/30fps)

Minimum Illumination

0.009Lux/F2.0( Color,1/3s,30IRE); 0.07Lux/F2.0( Color,1/30s,30IRE); 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 2410240Kbps<br>H.265: 149984Kbps

IR Distance

Up to 30m (98ft)

IR On/Off Control

Auto/Manual

IR LEDs

2

Lens Type

Fixed

Focal Length

2.8mm (3.6mm, 6mm optional)

Max. Aperture

F2.0

Angle of View

2.8mm: H: 110°, V: 58°, D: 131°<br>3.6mm: H: 87°, V: 46°, D: 105°<br>6.0mm: H: 52°, V: 30°, D: 60°

Optical Zoom

N/A

Focus Control

Fixed

DORI Distance

See detailed values for Detect, Observe, Recognize, Identify

Pan/Tilt/Rotation

Pan: 0°~20°, Tilt: ±15°, Rotation: 0°~360°

Intelligence

IVS: Tripwire, Intrusion, Object Abandoned/Missing<br>Advanced Intelligent Functions: Face Detection

Video Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080), 1.3M(1280x960), 720P(1280×720), D1(704×576/704×480), VGA(640×480), CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(150/60fps)<br>Sub Stream: D1(150/60fps)<br>Third Stream: 1080P(1~25/30fps)

Bit Rate

H.264: 2410240Kbps<br>H.265: 149984Kbps
