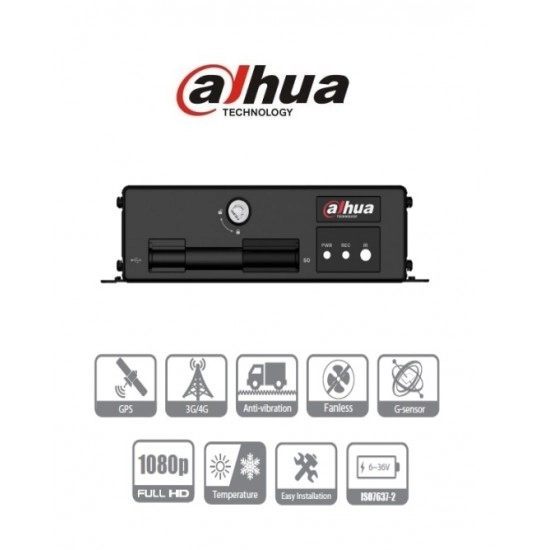

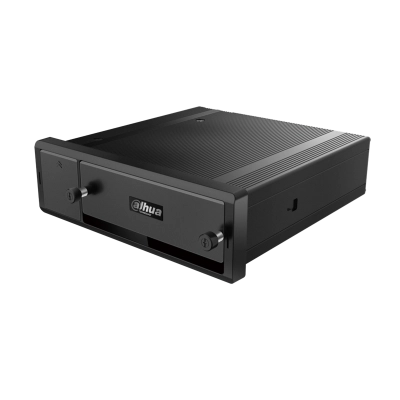

IP Mobile Recorders 4 Channels | DHI-MXVR1004-GCW | 4ch 1080P 2SD compression standard H265 GPS, 3G,

Main Processor

Embedded microprocessor

Operating System

Embedded LINUX

Video Input

4 channels HDCVI/AHD/TVI/CVBS + 1 channel 4MP IPC

Two-way Talk

Supported

Display Interface

2 TVs (1 aviation connector)

Display Resolution

800×600

Display Split

1/4/6

Privacy Masking

4 rectangular zones (each camera)

OSD

Channel name, time, GPS, license No.

Recording Resolution

4 channels @ 1080P real-time

Video Compression

H.265/H.264

Audio Compression

G.711A/G.711U/PCM

Alarm Inputs

7 channels

Alarm Outputs

2 channels

Storage

2 SD cards, up to 256 GB each

Network Interface

RJ-45 Port (10/100 Mbps)

Wireless Network

Built-in 3G/4G/Wi-Fi (optional)

GPS

Built-in high accuracy GPS (optional)

Max. User Access

128 users

Smart Phone Support

iPhone, iPad, Android

USB Ports

2 USB 2.0

Power Supply

DC 6V~36V

Power Consumption

6.7W (Without HDD)

Operating Temperature

-30°C to +70°C (-22°F to +158°F)

Operating Humidity

10%–90% RH

Dimensions

138mm×160mm×49mm (5.4" x 6.3" x 1.9")

Net Weight

0.97 kg (2.13 lb)

Certifications

CE, FCC
