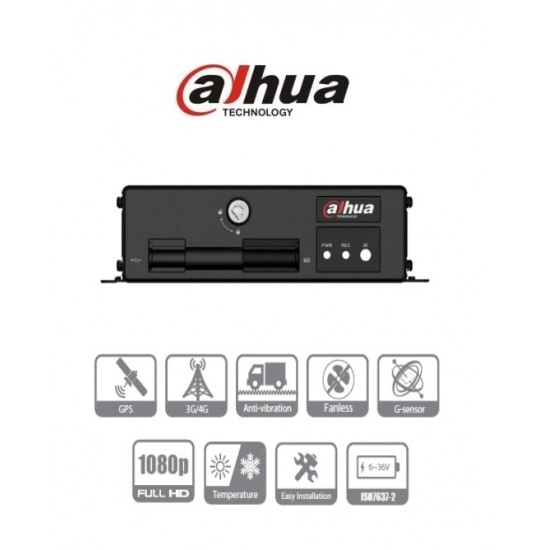

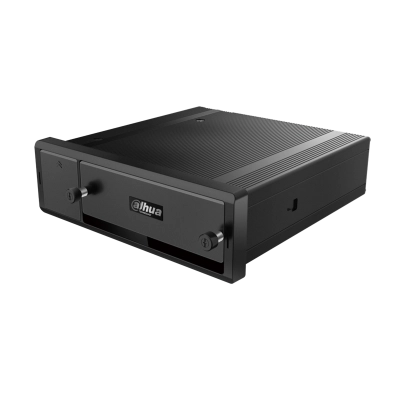

Dahua - Car DVR Dahua MXVR1004-GF, 4 channels, 2 MP, GPS, GSM 4G

Supported Technologies

HDCVI/AHD/TVI/CVBS/IP

Analog Video Inputs

4 channels

IP Video Inputs

1 channel, 4 MP

Video Outputs

HDMI, VGA

Display Split

1/4/6

Playback Resolution

800 x 600 pixels

Bidirectional Communication

1

Recording Resolution

4 channels at 2 MP (Full HD 1920 x 1080 pixels)

Registration Modes

Manual, Programmed, Motion detection, Stop

Video Compression

H.265/smart H.265, H.264/smart H.264

Audio Compression

G.711A, G.711U, PCM

Network Interface

RJ-45 port (10/100M)

Smartphone Compatibility

iPhone, iPad, Android

SD Card Slots

2 slots, up to 256 GB each (not included)

USB Ports

2x USB 2.0 ports

RS485 Port

1 port for PTZ Control

RS232 Port

1 port

Heating

Optional

Playback Functions

Play, Pause, Stop, Fast play, Slow play, etc.

Backup Mode

USB, Network

Privacy Mask

4 rectangular areas

OSD Features

Channel name, Time, GPS

Trigger Events

Recording, PTZ, Tour, Alarm, Email, FTP

Video Detection

Motion detection, 396 zones

Alarm Inputs

7 channels (6 local, 1 pulse)

Alarm Outputs

2 channels (1 relay, 1 controllable 12V output)

Wireless Network

4G mode

GPS

High accuracy

Network Functions

TCP/IP, UDP, DHCP, FTP, Email, Alarm Server

Maximum Users

128

Operating Temp.

-30°C to +70°C (with heater)

Power Supply

DC 6V~36V

Power Consumption

6.7W

Dimensions

138 x 160 x 49 mm

Weight

0.97 kg
