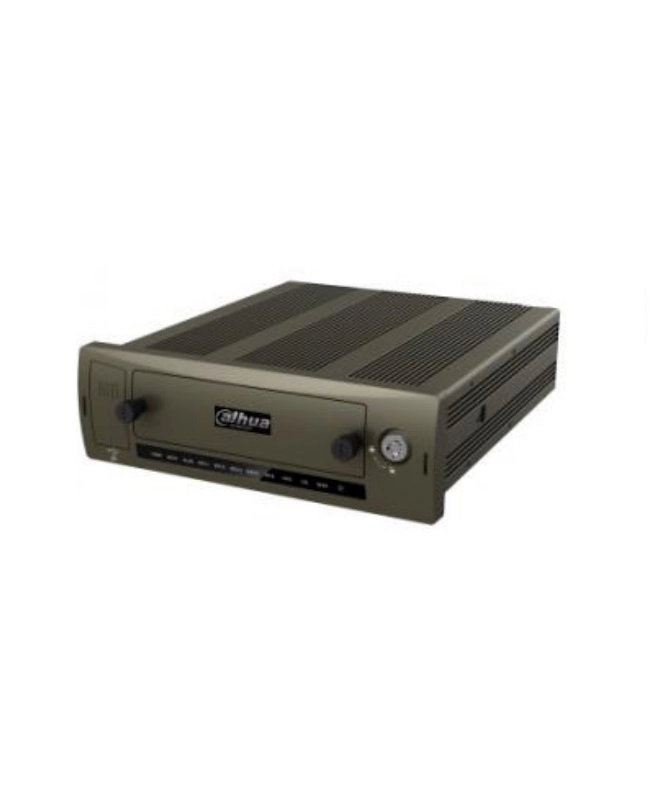

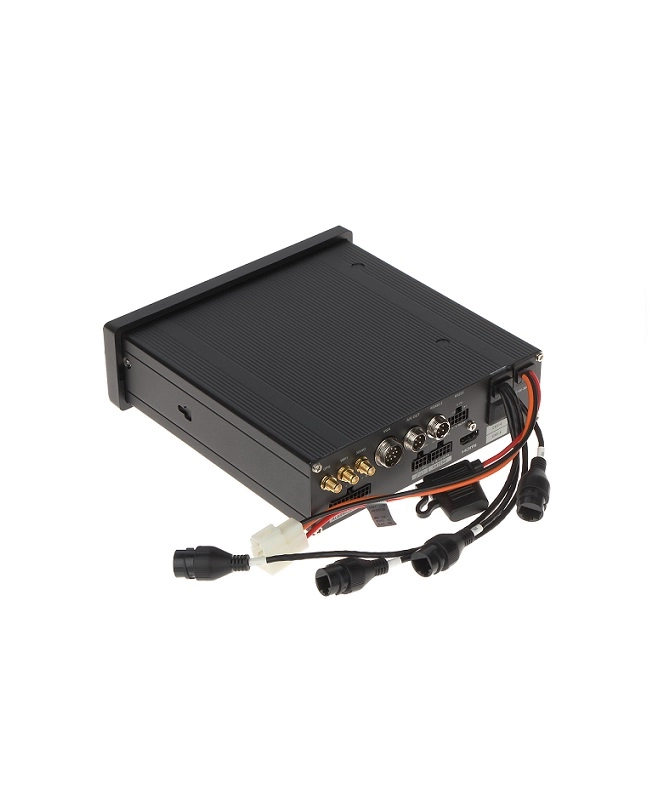

Dahua Mobile Video Recorder - DHI-MNVR4208-GC -8 Channels POE H.265 2 HDDs

System

Embedded microprocessor, Embedded LINUX

Video and Audio

IP Camera Input: 8 channels, Two-way talk: 1 input, 1 output

Display

Interface: 1 VGA, 2 TV, 1 HDMI, Resolution: 800×600, Display Split: 1/4/8/9

Privacy Masking

4 rectangular zones per camera

OSD

Channel name, time, GPS, license No.

Recording

Video Compression: H.265/smart H.265 /H.264/smart H.264, Audio Compression: G.711A/G.711U/PCM, Resolution: 8 channels@4MP realtime recording

Record Mode

Manual, Schedule (Regular, MD, Alarm), Stop

Record Interval

1120 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips, Video Detection: Motion Detection, MD Zones: 396 (PAL: 22×18, NTSC: 22×15), Video Loss & Tampering

Alarm Input

9 channels, Alarm 1–8 local, Alarm 9 pulse input

Alarm Output

2 channels, 1 relay out, 1 Controllable 12V out

Backup Mode

USB Device/Network

Storage

Internal HDD: 2 HDDs, SD card: 1 SD card, Up to 256 GB

Compatibility

HDD compatibility: MQ01ABD050V/MQ01ABD100V/WD20SPZX, SSD compatibility: S820GS512G/S820GS1TB/ZA1000CM1A003
