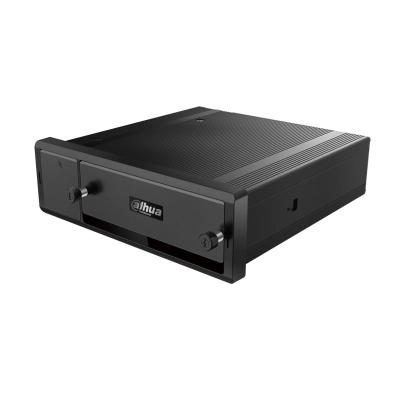

Dahua 4 Channels H.265 1 HDD Mobile Video Recorder (DHI-MXVR4104-GF)

Processor

Embedded microprocessor

Operating System

Embedded LINUX

Video Inputs

4 channels HDCVI/AHD/TVI/CVBS + 4 channels 4MP IPC (No audio for AHD/TVI cameras)

Audio Inputs

1 channel input, 1 channel output

Display

1 VGA, 2 TV

Display Resolution

800×600

Display Split

1/4/8/9

Privacy Masking

4 rectangular zones per camera

OSD

Channel name, time, GPS, license number

Video Compression

H.265/smart H.265 /H.264/smart H.264

Audio Compression

G.711A/G.711U/PCM

Resolution

4 channels @1080P real-time recording

Record Modes

Manual, Schedule (Regular, MD, Alarm), Stop

Record Interval

1120 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec

Detection

Motion Detection, MD Zones: 396 (PAL: 22×18, NTSC: 22×15), Video Loss & Tampering

Alarm Inputs

9 channels (Alarm 1-8 local, Alarm 9 pulse)

Alarm Outputs

2 channels (1 relay out, 1 controllable 12V out)

Playback

1 channel

Search Mode

Time/Date, Alarm, Motion Detection, Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next/Previous file, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network

Storage

Internal HDD (1 HDD), SD card (up to 256 GB)
