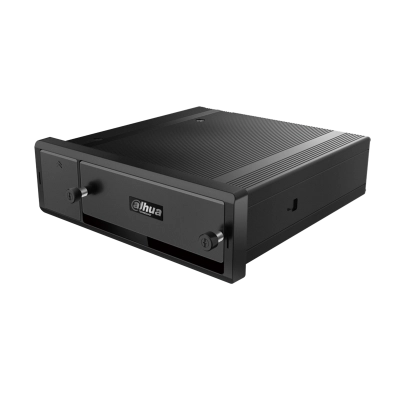

Dahua - 8-channel Car DVR DH-XVR7416L-4KL-X

Model

DHI-MXVR6212

System

Embedded microprocessor, Embedded LINUX OS

IP Cameras Supported

8+4 channels

Analog Standard

NTSC, PAL

HDCVI Standard

1080P HDCVI camera

Audio

8-ch aviation connector + 2-ch sensor, 1ch audio call, 1ch two-way comm.

Display Interface

1 VGA, 2 TV

Resolution

1920x1080, 1280x1024, 1280x720, 1024x768, 800x600

Display Division

1/4/8/9/12

Recording Compression

Smart264/H.264/G711

Recording Speed

Main Stream: 12ch @ 1080p (1-25fps); Sub stream: D1 (1-6fps) / CIF (1-25fps)

Recording Mode

Manual, scheduled: continuous, motion, alarm

Playback Features

Play, pause, stop, rewind, fast play, slow play, full screen, repeat, shuffle

Alarm Inputs

9 channels, 1-7 local, 8.9 pulse input

Alarm Outputs

2

Ethernet

1 RJ-45 port (10/100 Mbps)

Wireless Interfaces

Built-in 3G/4G/Wi-Fi modules

GPS

Embedded module

Network Features

TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm

Max Users

128 users

Smartphone Support

iPhone, iPad, Android

Storage

2 internal HDD slots, 1 SD card slot

USB Ports

3 USB 3.0

RS232 Ports

2

RS485 Ports

2

CAN Support

Yes

Heater

Optional

Power Supply

DC 6-36V

Power Consumption

12W (without HDD)

Operating Temperature

-30° C ~ +60° C

Humidity

0% ~ 90%

Dimensions (WxDxH)

180x190x50 mm

Weight

2.65 kg (without HDD)

Certifications

CE, FCC, EN50155, ISO16750
