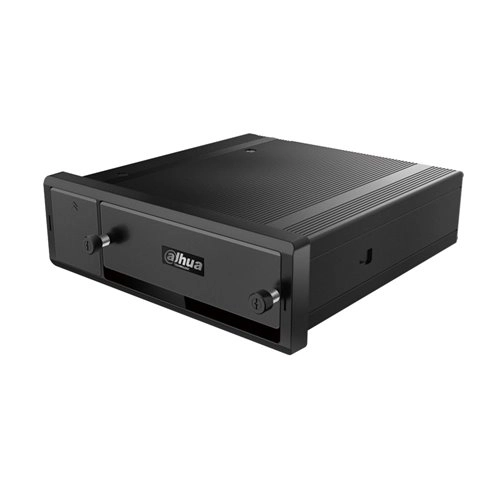

XVR 5 IN 1 MOBILE 8 CHANNELS HDCVI-MXVR6212-GFW

Audio

1 input, 1 output

Video Outputs

2 TV, 1 VGA

RS Ports

2 RS232, 2 RS485

CAN Support

Yes

Power Range

6V ~ 36V DC

IP Channels

4 additional IP channels

Display Resolution

1920x1080, 1280x1024, 1280x720P, 1024x768, 800x600

Stream 2

D1 (1 ~ 6 ips), CIF (1 ~ 25 ips)

Video Sensor

Configurable per camera (22x18 grid)

Communication Modules

3G/4G, WiFi, GPS

Remote Access

Up to 128 users

Consumption

<12W (without HDD)

Dimensions

180 (W) x 60 (H) x 190 (D) mm

Supported Technologies

IP, HDCVI, HDTVI, AHD, CVBS

Output Division

1, 4, 8, 9, 12

Signal Recognition

Automatic

Privacy Mask

4 zones per camera

Recording Modes

Manual, calendar, video detection, alarm

Video Encoding

Smart H.264, H.264

Recording Resolution

1080P (1920x1080)

Recording Intervals

1 ~ 120 min (default 60 min)

Alarms

9 inputs, 2 outputs

Network Interface

RJ45 (10/100Mbps)

Mobile Compatibility

iOS, Android

Temperature

Storage: -30°C ~ +70°C, Operating: -30°C ~ +60°C

Weight

2.65kg (without HDD)

Playback

4 channels

Analog Channels

Up to 8 (CVI/TVI/AHD/CVBS)

BNC Inputs

8 with aviation connectors

Stream 1

12 channels 1080P (1 ~ 25 ips)

Pre/Post-record

1 ~ 30 sec / 10 ~ 300 sec

Storage

2 SATA HDDs, SD card slot

Network Protocols

TCP/IP, UDP, DHCP, FTP, Email, Alarm server

USB Ports

1 USB2.0, 2 USB3.0

Humidity

10% ~ 90%

Certificates

FCC, ISO16750
