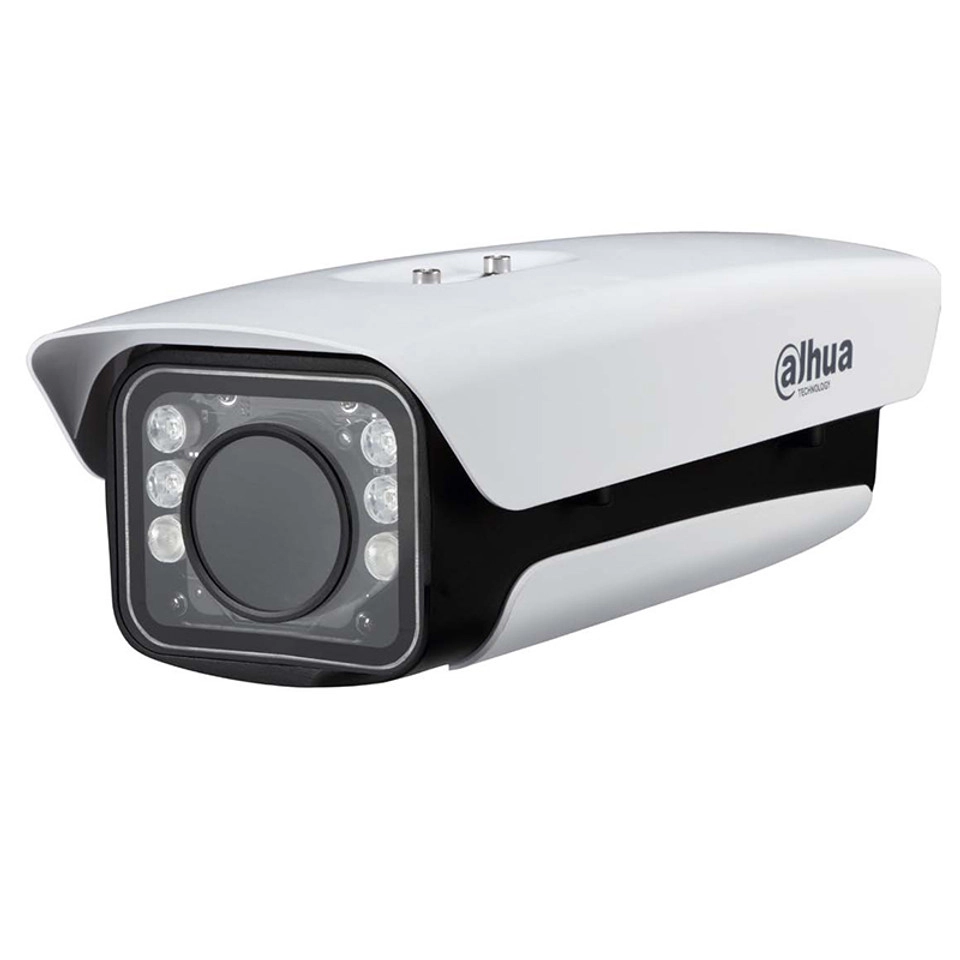

Dahua 2 Megapixel Full HD WDR Access ANPR Camera-DHI-ITC237-PU1B-IR-

Image Sensor

1/1.8” 2 Megapixel Starvis R CMOS

Effective Pixels

1920(H) x 1080(V)

Minimum Illumination

0.0027Lux/F1.6 (Color), 0Lux/F1.6 (IR on)

Electronic Shutter

1/50 ~ 1/10000

IR Distance

Smart, up to 50m

Lens Type

Manual/Auto Iris (DC)

Mount Type

CS

Focal Length

2.7-50mm

Max Aperture

F1.6

Angle of View

H: 92° ~ 5.6°, V: 37.5° ~ 4.2°

Focus Control

Manual

Close Focus Distance

4~40m for license plate

Focus Width Range

1~2 lanes width

LPR Function

Embedded with LPR engine

Detection Model

Loop or video detection

OSD Overlay

Time, plate number, White list 10000 records

Barrier Control

2 channels relay out

Video Compression

H.265/H.264M/H.264H/H.264B/MJPEG/MPEG4

Resolution

1080P (1920x1080)

Frame Rate

1 ~ 25/30fps

Bit Rate Control

CBR, VBR

Bit Rate

32 ~ 16384 Kbps

Day/Night Mode

Auto(ICR)/Color/B/W

BLC Mode

BLC, HLC, WDR (140db)

Dual Stream

Yes (Main stream and sub stream)

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Network Interface

RJ-45 (100/1000Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS

Interoperability

CGI, Onvif, SDK

Max User Access

20

Edge Storage

Micro SD, Max 128GB

Status Display

Local PC for Instant Recording

Web Viewer

IE8, IE9, IE10, IE11, Chrome V33, V41

Management Software

DSS, PMS, EMS

Certifications

CE, FCC
