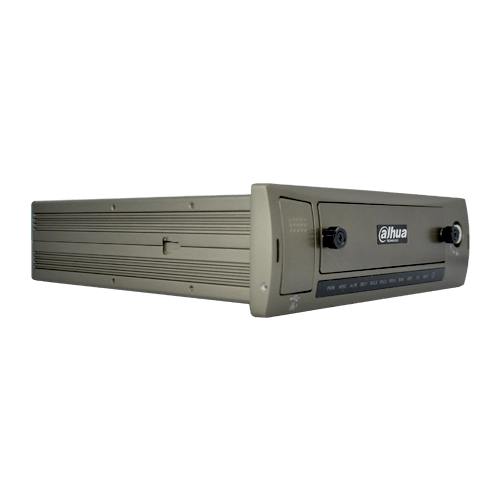

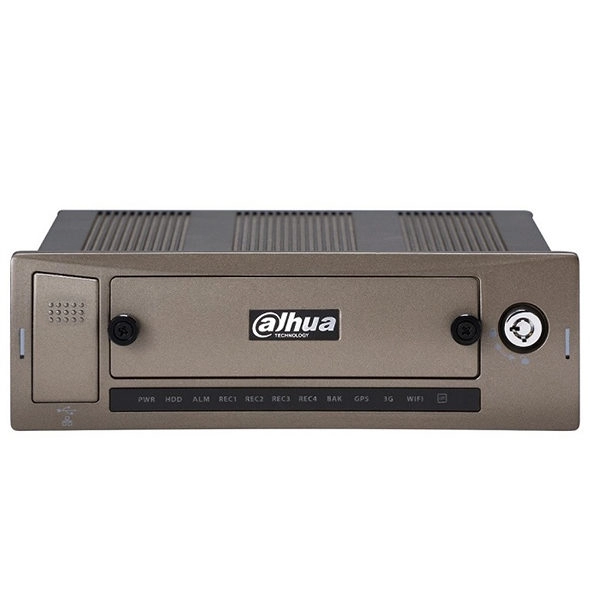

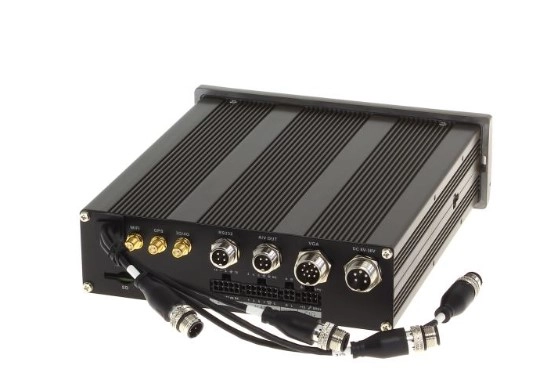

Dahua 4-Channel PAL Mobile DVRDHI-MCVR5104-GCW

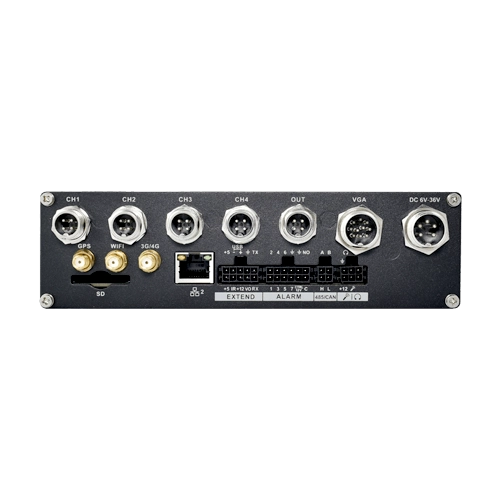

Video Inputs

4 pcs - M12, 4-pin socket

Video Outputs

2 pcs CVBS, 1 pcs VGA - M16, 10-pin socket

Audio Inputs

4 pcs - Audio from cameras - M12, 4-pin socket, External microphone - M12, 4-pin socket

Audio Outputs

1 pcs - M12, 4-pin socket

Resolution of Recording Video Files

1920 x 1080, 1280 x 720, 720 x 576, 352 x 576

Maximal Total Frame Rate

100 fps @ 2 x HD-CVI 1080p + 2 x HD-CVI 720p, 100 fps @ 4 x HD-CVI 720p, 100 fps @ 4 x CVBS 960H

Supported Hard Drives

1 pcs 2.5" - 2 TB SATA

Max. Capacity of Memory Card

128 GB SD/SDHC

Image Compression Method

H.264

Number of Compression Levels

8

GPS

N/A

G-Sensor

N/A

SIM Socket

N/A

RS-485

PELCO-D/P and others

RS-232

N/A

Alarm Inputs / Outputs

7 / 2

Power Supply

6 V ... 36 V DC

Power Consumption

≤ 15 W

Operation Temperature

-30 °C ... 60 °C

Permissible Relative Humidity

10% ... 95% RH

Weight

2.02 kg

Dimensions

190 x 233 x 60 mm

Supported Languages

English, Polish

Manufacturer / Brand

DAHUA

Guarantee

3 years
