Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Video Inputs
4 pcs Ethernet + PoE (802.3af/at) - M12, 4-pin plug
Video Outputs
1 pcs CVBS, 1 pcs VGA - M16, 10-pin socket
Audio Inputs
4 pcs - Audio from cameras, External microphone - 2-pin
Audio Outputs
1 pcs - 2-pin
Resolution of Recording Video Files
1920 x 1080, 1280 x 720, 720 x 576, 352 x 576
Maximal Total Frame Rate
100 fps @ 4 x IP 1080p
Bitrate
100 Mbps
Network Protocols
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, E-mail, Alarm Server, ONVIF 2.3
Supported Hard Drives
1 pcs 2.5 " - 2 TB SATA
Max. Capacity of Memory Card
128 GB SD/SDHC
Image Compression Method
H.264
Number of Compression Levels
8
RS-485
PELCO-D/P
Alarm Inputs / Outputs
7 / 2
Power Supply
6 V ... 36 V DC
Power Consumption
≤ 15 W (without HDD)
Operation Temperature
-30 °C ... 60 °C
Permissible Relative Humidity
10 % ... 95 % RH
Weight
2.05 kg
Dimensions
180 x 230 x 50 mm
Manufacturer / Brand
DAHUA
Guarantee
3 years
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

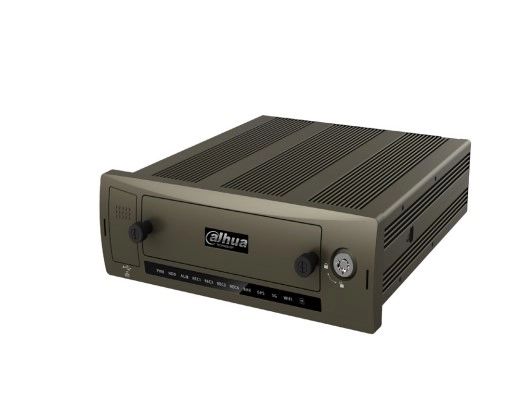

The Dahua 4-Channel IP Mobile DVR DHI-MNVR1104-GC is a robust and versatile mobile video recording solution designed for vehicular surveillance. It features four Ethernet video inputs with PoE support, allowing easy connection to IP cameras. This DVR supports high-definition video recording at resolutions up to 1920 x 1080, with a total frame rate of 100 fps across all channels. It includes both CVBS and VGA video outputs for flexible display options. The audio system comprises four inputs for camera audio and an external microphone, along with a single audio output. Key features include H.264 video compression, support for up to 2 TB SATA hard drives and 128 GB SD/SDHC memory cards, and extensive network protocol compatibility. The unit operates efficiently across a wide temperature range and supports multiple alarm inputs and outputs. With its durable design and comprehensive functionality, it is ideal for mobile surveillance applications.
