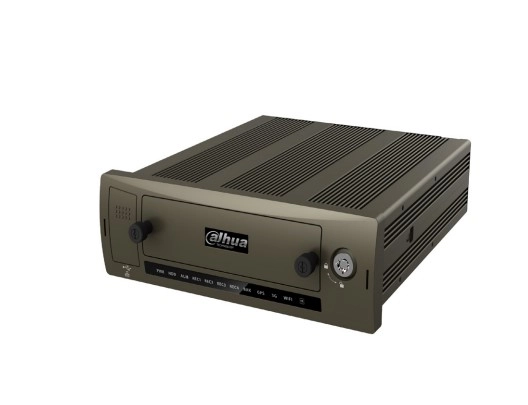

Dahua 4-Channel IP Mobile DVR DHI-MNVR1104-GCW

Available

Category: Consumer Electronics

Subcategory: Mobile Phone & Accessories

Brand: Dahua Mobile

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Weight

2.01 kg

Video Inputs

4 pcs Ethernet + PoE (802.3af/at) - M12, 4-pin plug

Video Outputs

1 pcs CVBS<br>1 pcs VGA - M16, 10-pin socket

Audio Inputs

4 pcs - Audio from cameras<br>External microphone - 2-pin

Audio Outputs

1 pcs - 2-pin

Resolution of Recording Video Files

1920 x 1080, 1280 x 720, 720 x 576, 352 x 576

Maximal Total Frame Rate

100 fps @ 4 x IP 1080p

Bitrate

100 Mbps

Network Protocols

TCP/IP, UDP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, E-mail, Alarm Server, ONVIF 2.3

Supported Hard Drives

1 pcs 2.5" - 2 TB SATA

Max. Capacity of Memory Card

128 GB SD/SDHC

Image Compression Method

H.264

Number of Compression Levels

RS-485

PELCO-D/P

Alarm Inputs / Outputs

7 / 2

Power Supply

6 V ... 36 V DC

Power Consumption

≤ 15 W (without HDD)

Operation Temperature

-30 °C ... 60 °C

Permissible Relative Humidity

10 % ... 95 % RH

Dimensions

180 x 230 x 50 mm

Supported Languages

English, Polish

Manufacturer / Brand

DAHUA

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

The Dahua 4-Channel IP Mobile DVR DHI-MNVR1104-GCW is a high-performance mobile video recorder designed for versatile and durable surveillance. It supports four PoE Ethernet inputs for IP cameras up to 1080p resolution and offers CVBS and VGA video outputs. Key features include H.264 dual-stream compression, four audio inputs, one audio output, and advanced alarm management with seven inputs and two outputs. It supports a 2.5" SATA hard drive up to 2TB and a 128GB SD/SDHC card. With built-in 3G/4G and Wi-Fi modules, it ensures reliable connectivity. This rugged DVR operates in extreme temperatures, making it ideal for mobile installations.
