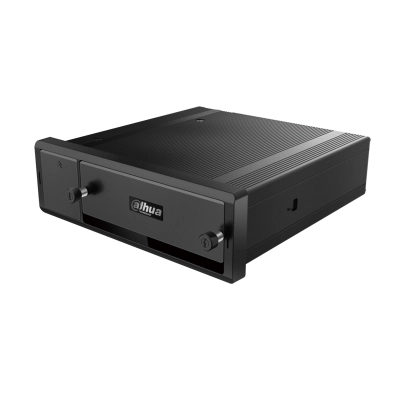

8 Channel Mobile HDCVI Video Recorder-MCVR6208

Main Processor

Embedded microprocessor

Operating System

Embedded LINUX

Audio and Video

Input: 8 Channel (No audio in with analog cameras)

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display Interface

1 VGA, 2 TV (1 aviation connector)

Display Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4/8/9

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression: H.264/G.711

Bit Rate

48~8192Kb/s

Record Mode

Manual, Schedule (Regular, MD, Alarm), Stop

Record Interval

1120 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank

Alarm Input

9 channels, Alarm 1-7 (local), Alarm 8/9 (pulse input)

Alarm Output

2 channels, 1 relay out, 1 Controllable 12V out

Playback and Backup

Playback: 1/4

Search Mode

Time/Date, Alarm, Motion Detection, Exact search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network

Storage

Internal HDD: 2 SATA Ports

SD card

1 SD card, Up to 128 GB
