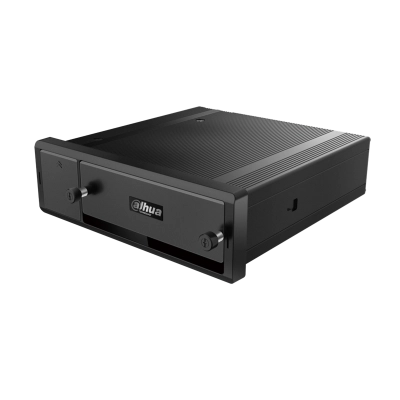

Dahua Channel Mobile HDCVI Video Recorder -DHI-MCVR6208-GCW -8

Main Processor

Embedded microprocessor

Operating System

Embedded LINUX

Input

8 Channel (No audio for analog cameras)

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Interface

1 VGA, 2 TV (1 aviation connector)

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4/8/9

Privacy Masking

4 rectangular zones (each camera)

Resolution

8 ch@1080P realtime recording

Bit Rate

48~8192Kb/s

Record Mode

Manual, Schedule (Regular, MD, Alarm), Stop

Record Interval

1120 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec

Trigger Events

Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank

Alarm Input

9 channels, Alarm 1-Alarm 7 is the local alarm input; Alarm 8/9 is pulse input

Alarm Output

2 channels, 1 relay out, 1 Controllable 12V out

Playback

1/4

Search Mode

Time/Date, Alarm, Motion Detection & Exact search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network

Internal HDD

2 SATA Ports

SD Card

1 SD card, Up to 128 GB
