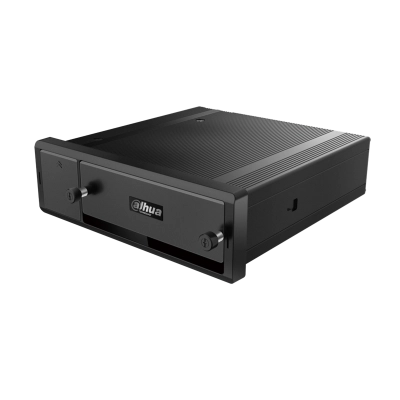

8+4 Channel 2 HDD Mobile Video Recorder-MXVR6212

Audio Input

8 channels aviation connector + 2 channels pickup

Audio Output

1 channel aviation connector + 1 channel audio talk

Two-way Talk

1 channel input, 1 channel output

Display Interface

1 VGA, 2 TV

Display Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4/8/9/12

Privacy Masking

4 rectangular zones per camera

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording Compression

smart264/H.264 for video, G.711 for audio

Record Rate

Main stream: 12 ch @ 1080P (1~25/30fps)

Sub Stream

D1 (16/8fps), CIF (125/30fps)

Bit Rate

48~8192Kb/s

Record Mode

Manual, Schedule (Regular, MD, Alarm), Stop

Alarm Input

9 channels (7 local, 2 pulse)

Alarm Output

2 channels (1 relay, 1 controllable 12V)

Playback Channels

4

Network Interface

RJ-45 Port (10/100Mbps)

USB Ports

3 Ports (2 USB 3.0)

RS232 Ports

2 Ports for PC Communication and Keyboard

RS485 Ports

2 Ports for PTZ Control

CAN Support

Yes

Power Supply

DC 6V~36V

Power Consumption

<12W (Without HDD)

Operating Conditions

-30°C (with heater) ~ +60°C (+14°F ~ +131°F)

Storage Conditions

-30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Dimensions

180mm × 190mm × 50mm (7.0" × 8.7" × 2.0")

Net Weight

2.65kg (whole package)

Certifications

CE, FCC, EN50155, ISO16750, EN45545-2
