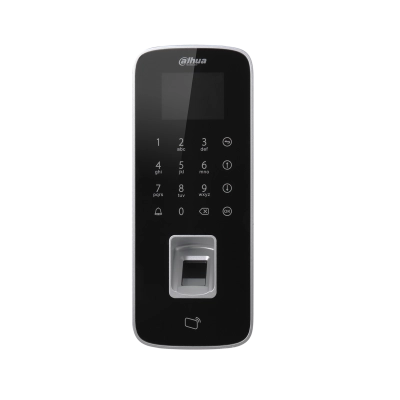

Fingerprint Standalone ASI1212D ASI1212D-D

Main Processor

32 Bit

Input Ports

Door sensor x 1, Exit button x 1, Alarm input x 1

Output Ports

Relay x 3 (Door lock x 1, Bell x 1, Alarm x 1)

Card Read

Read Format: 13.56MHz

Read Range

1-3cm (max.)

Response Time

<0.1s

Fingerprint Read

Response Time: ≤1.5s

Capacity

Card holders: 30,000

Access Control

Anti-passback, Multi-card unlock

User Management

General, VIP, Guest, Patrol, Black list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Schedule Setting

Support 128 groups of schedule, 128 groups of period, 128 groups of holiday period

Interface

To PC: RJ45(10/100M)To Reader: Wiegand34/26, RS485

General

RTC: Yes

Operating Temperature

-10°C to +55°C

Working Humidity

10%RH–90%RH (no-condensation)

Dimension (W×D×H)

83.0mm × 210.0mm × 33.0mm

Weight

0.44kg

Working Environment

Indoor
