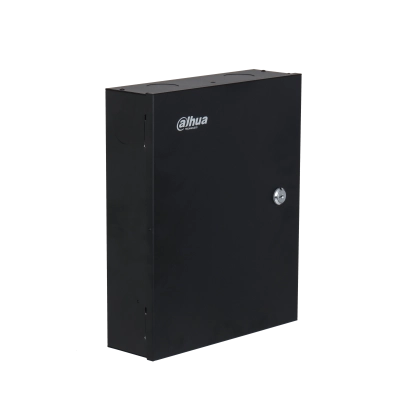

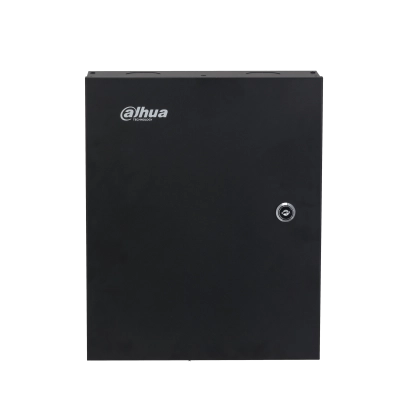

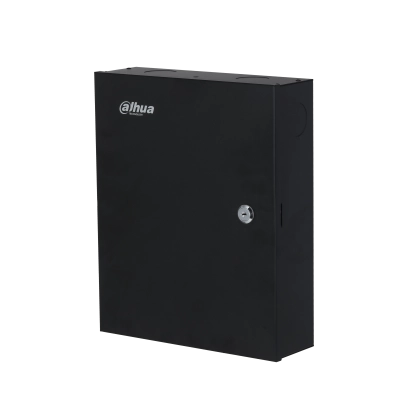

Access Controller ASC2204C-D


Minimum Order Quantity: 1 PCS


Description

T

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image
System
Main ProcessorEmbedded processor
Internet ProtocolIPv4; TCP; UDP
OSDP ProtocolYes
SDKYes
Basic
Product AppearanceType C Iron Container
BuzzerYes
Casing MaterialSECC steel board
Function
Unlock ModeCard swiping; Remote; Password; Fingerprint
Period List128
Holiday Period128
Network UpdateYes
First-Card UnlockYes
Remote VerificationYes
Blocklist/AllowlistYes
Peripheral Card Reader8-Channel RS-485 card reader
8-Channel Wiegand card reader
Multi-door InterlockYes
Group CombinationCard swiping; password; fingerprint
Real-Time SurveillanceYes
Multiple AuthenticationYes
User
User (Card) TypeGeneral user; VIP user; patrol user; guest user; blocklist user; other user
Capacity
User100,000
Fingerprint3,000
Card100,000
Record Capacity500,000
Port
RS-485 Port9 × RS-485 ports
Wiegand8 × Wiegand ports
Network1 × 10/100 Mbps Ethernet port
Alarm Input8 (digital quantity)
Alarm Output8 (relay)
Alarm LinkageYes
Exit Button4
Door Status Detection4
Lock Control4 channels, NO by default
Alarm
Anti-PassbackYes
TamperYes
DuressYes
Door Unlock TimeoutYes
IntrusionYes
Illegal Card Exceeding ThresholdYes
Duress FingerprintYes
General
Power Supply100-240 V AC
IP RatingIP20; Ik04
Power Consumption? 0.8 W (standby), ? 39.6 W (working)
Product Dimensions337 mm × 272 mm × 90 mm (13.27”× 10.71”× 3.54") (H × W × D)
Packaging Dimensions472 mm × 352 mm × 163 mm (18.58" × 13.86" × 6.42") (H × W × D) (one product in an inner carton)
Operating Temperature–30°C to +60°C (–22 °F to +140 °F)
Operating Humidity5%–95% RH (non-condensing)
Operating EnvironmentIndoor
Gross Weight3.5 kg (7.72 lb)
InstallationSurface mount
CertificationCE; FCC; UL
