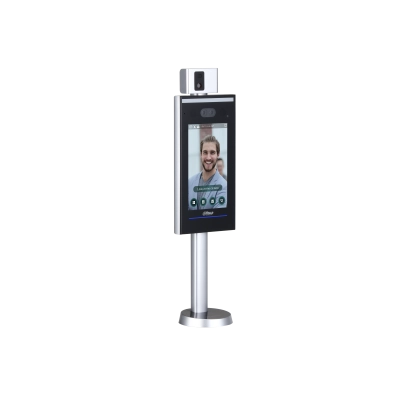

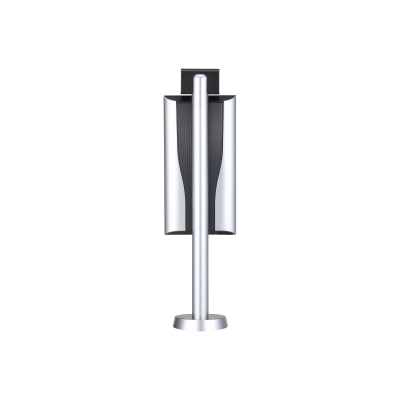

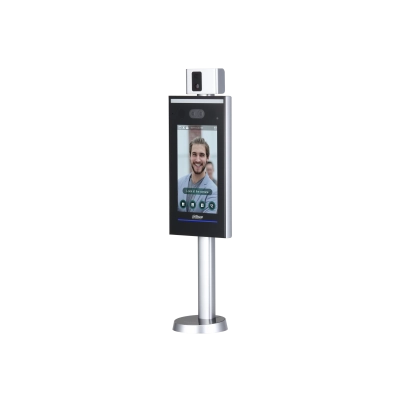

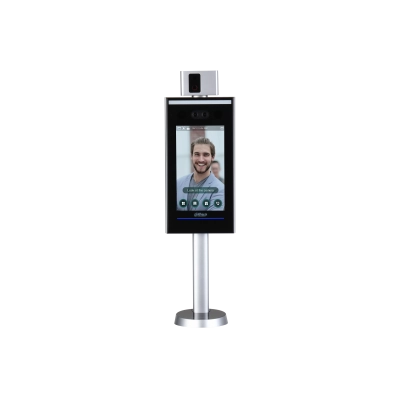

Face Recognition Terminal ASI7223X-A-T1

Shutter

Automatic built-in shutter

Power Adapter

Included

Power Supply

12V 2A DC

Power Consumption

≤ 24W

Product Dimensions

477.0 mm × 129.0 mm × 99.7 mm

Temperature Monitoring Range

30°C to 45°C

Main Processor

Embedded Processor

Network Protocol

IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol

Yes

Interoperability

ONVIF; CGI

SDK and API

Support SDK (Basic)

Display Screen

7-inch capacitive screen

Resolution

600 (H) × 1024 (V)

Image Sensor

1/2.8" 2MP CMOS high definition WDR dual camera

WDR

120 dB

Light Compensation

Auto white light, Auto IR light

Status Indicator

1 indicator light. Red: Error; Green: Normal; Blue: Working

Unlock Mode

Remote/Password/Face unlock and unlock through combinations

Period List

128

Holiday Period

128

Remote Verification

Yes

Peripheral Card Reader

1 RS-485, 1 Wiegand

Real-Time Surveillance

Yes

Web Configuration

Yes

Face Recognition Distance

0.3 m–2.0 m

Face Verification Accuracy

99.5%

Face Recognition Time

0.2 s

Temperature Monitoring Accuracy

±0.1°C

Temperature Monitoring Error

±0.5°C

Temperature Monitoring Distance

0.3 m–1.2 m

Temperature Monitoring Height

135 cm–185 cm (at 0.5 m distance)

User Capacity

100,000

Face Image Capacity

100,000

Password Capacity

100,000

Record Capacity

300,000 records

RS-485

1

Wiegand

1 (input or output)

USB

1 USB2.0 port

Network

1 1000Mbps network port, 1 100Mbps network port

Alarm Input

1 (Switch quantity)

Alarm Output

1 (Relay)

Alarm Linkage

Yes

Exit Button

2

Lock Control

2

Alarm

Anti-Passback, Tamper, Duress

Effective Pixels

120 x 90

Pixel Size

17 µm

Focal Length

1.3 mm F 1.1

Packaging Dimensions

Controller packaging: 593 mm × 258 mm × 130 mm

Operating Temperature

Temperature monitoring mode disabled: –10°C to +55°C

Operating Humidity

0%RH–90%RH (non-condensing)

Operating Environment

Indoor

Gross Weight

3.1 kg (6.83 lb)

Installation

Desktop

Certifications

CE, FCC
