Category: Consumer Electronics
Subcategory: Biometrics & Access Control Devices
Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Main Processor
Embedded Processor
Network Protocols
IPv4, RTSP, RTP, TCP, UDP, P2P, SIP
OSDP Protocol
Yes
Display Screen
7-inch Capacitive Screen, Resolution 600x1024
Camera
1/2.8" 2MP CMOS WDR Dual Camera
WDR
120 dB
Light Compensation
Auto White Light, Auto IR Light
Voice Prompt
Yes
Casing
Aluminium Alloy/Tempered Glass/PC
Unlock Modes
Remote, Password, Face Unlock, Combination
Face Recognition Distance
0.3 m–2.0 m
Face Verification Accuracy
99.5%
Face Recognition Time
0.2 s
Temperature Monitoring
30°C to 45°C, Error ±0.5°C, Distance 0.3 m–1.8 m
User Capacity
100,000
Face Image Capacity
100,000
Password Capacity
100,000
Record Capacity
300,000 records
Ports
RS-485, Wiegand, USB 2.0
Ethernet Ports
2
Alarm Inputs/Outputs
1/1 (Switch/Relay)
Power Supply
12V 2A DC
Power Consumption
≤24W
Dimensions
477 x 129 x 99.7 mm
Weight
3.1 kg (6.83 lb)
Certifications
CE/FCC
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

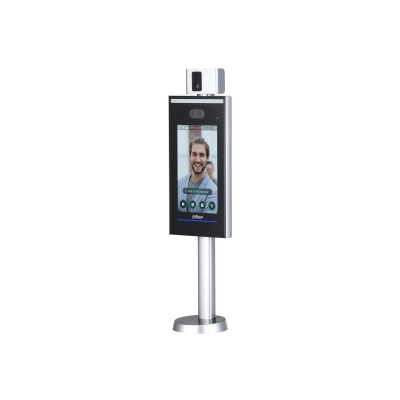

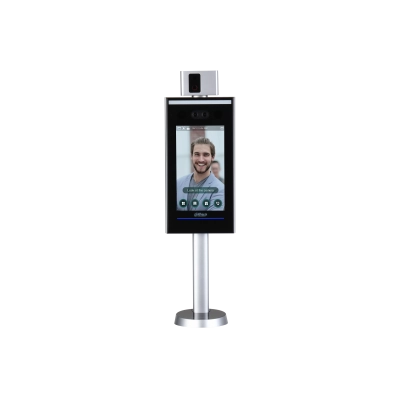

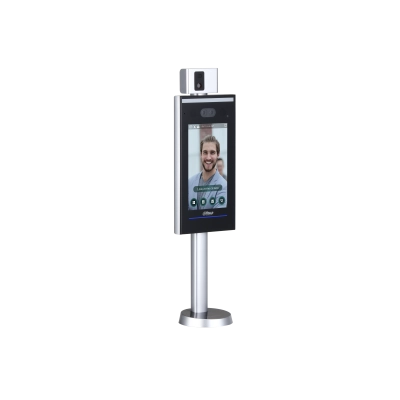

The Dahua Face Recognition Terminal ASI7223X-A-V1-T1 is a sophisticated access control device designed to enhance security and streamline entry management. Equipped with advanced facial recognition technology, this terminal offers high accuracy and fast processing speeds, ensuring secure and efficient access control. It features a high-definition 2MP camera with WDR capability, capable of capturing clear images under varying lighting conditions. The device supports multiple unlock modes, including facial recognition, password, and remote control, providing flexibility for user authentication. With robust temperature monitoring capabilities, it can accurately measure temperatures within a specified range, making it suitable for health and security applications. The ASI7223X-A-V1-T1 also includes comprehensive connectivity options and alarm management features, making it an ideal solution for modern security systems.
