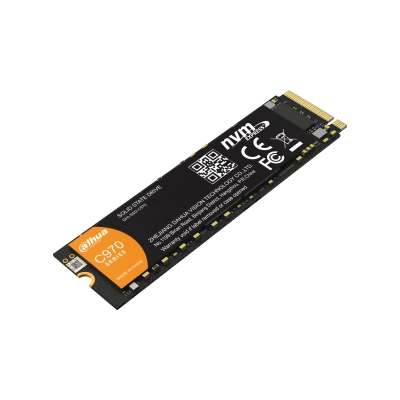

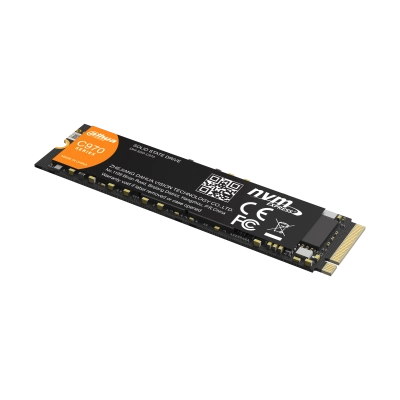

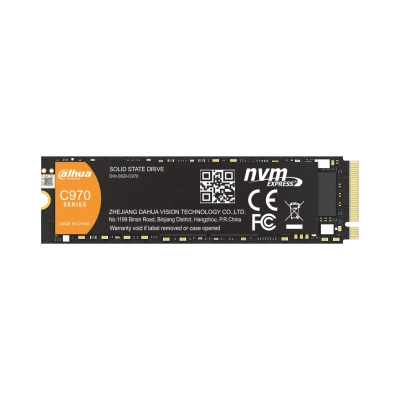

SSD-C970N1TB

Product Model

DHI-SSD-C970N256G

Capacity

256 GB

Form Factor

M.2 2280

Port

PCIe Gen 4.0 × 4

Net Weight

Max. 8 g (0.02 lb)

Product Dimensions

80.00 mm × 22.00 mm × 2.25 mm<br>(3.15" × 0.87" × 0.09")

Packaging Dimensions

140.5 mm × 105.5 mm × 15.50 mm<br>(5.53" × 4.15" × 0.61")

Memory Component

3D NAND

Power Consumption

3250 mW (max), 1450 mW (idle)

S.M.A.R.T

Yes

TRIM

Yes

Garbage Collection

Yes

Sequential Read

Up to 4,600 MB/s

Sequential Write

Up to 1,400 MB/s

4K Random Read

Up to 205,000 IOPS

4K Random Write

Up to 310,000 IOPS

MTBF

1,500,000 hours

Operating Temperature

0 °C to +70 °C (+32 °F to +158 °F)

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Operating Humidity

5%–95% (non-condensing)

Vibration Resistance

7-800 Hz, 3.08 G

Shock Resistance

1500G, 0.5 ms (half sine wave)

TBW

500 TB

Warranty

3-year limited warranty
