Multi-screen Controller-DSCON3000

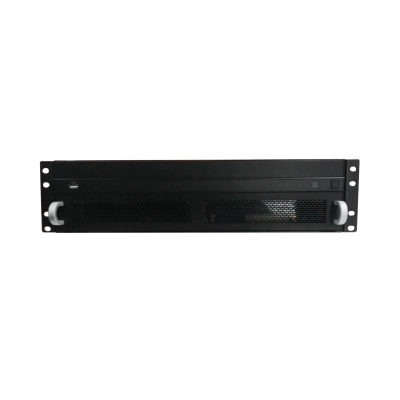

> 19” standard 2.5U ATCA industry box

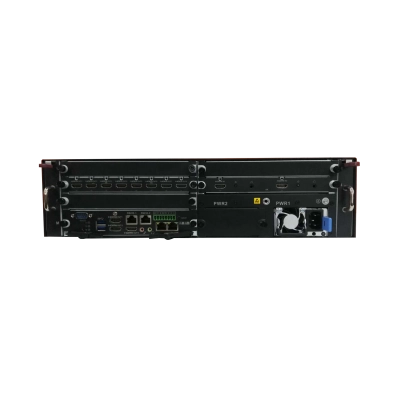

> High speed passive rear panel design, reliable and stable

> Easy and flexible configuration with pluggable card module design

> Support max 32 screens splicing and 3 additional outputs

> 16ch 1080P@25fps or 64ch D1@25fps signal decoding in main control board and 5ch 1080P@25fps or 16ch D1@25fps signal decoding for all output cards added (using the decoding capability of main control board)

> Provide low latency solution and excellent performance of synchronization

> Redundant power optional and smart temperature controlled fan

> Powerful main control chip inside, ultrahigh data processing capacity and good extensibility

> Support analog/digital video signals input and matrix output

> Support collection of 4K local signal via HDMI interface to achieve the high-definition display

> 2 RJ-45 gigabit network ports for matrix control, preview
