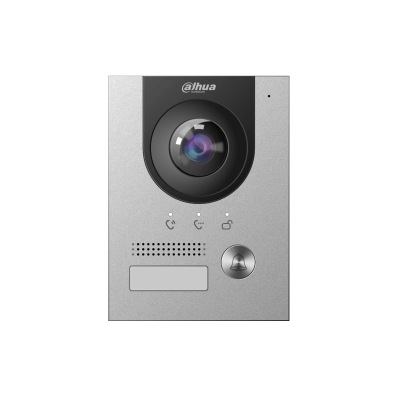

2-wire IP Villa Door Station-VTO2202F-P-S2


Minimum Order Quantity: 1 PCS


Main Processor

Embedded processor

Operating System

Embedded Linux

Button Type

Mechanical

Interoperability

ONVIF, CGI

Network Protocols

SIP, P2P, IPv4, UPnP, SNMP, DNS, DDNS, RTSP, RTP, TCP, UDP

Camera

1/2.5" 2MP CMOS low illumination HD colorful fisheye

Field of View

168.6°H, 87.1°V, 176.7°D

Focal Length

1.9 mm

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265

Video Resolution

720P@25fps, 1080P@25fps (50Hz)

Video Frame Rate

25 fps

Video Bit Rate

256 Kbps to 4 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)

Audio Compression

G.711a, G.711u, PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression, digital noise reduction

Audio Bit Rate

16 KHz, 16 Bit

Status Indicator Light

3

Ports

RS-485, Alarm, Power, Exit, Door, Lock, Network

Storage

Micro SD card (up to 64GB)

Appearance Color

Silver

Power Supply

Dahua 2-wire, DC 48V, PoE

Power Adapter

Optional

Installation

Flush, surface mount

Certifications

CE, FCC, UL

Accessories

Flush/surface mount

Dimensions

130 x 96 x 28.5 mm

Protection

IK07, IP65

Operating Temperature

-30°C to +60°C

Operating Humidity

10% to 90% RH

Operating Altitude

0 to 3000 m

Power Consumption

≤ 12W

Net Weight

0.35 kg


T

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

The Dahua VTO2202F-P-S2 is a 2-wire IP villa door station designed for secure and convenient access control. It features a 2MP CMOS camera with a 138° wide field of view, a mechanical button keypad with braille, and a Mifare card reader for user authentication. The station supports dual-way audio communication, allowing residents to communicate with visitors. Engineered for reliable outdoor performance, the VTO2202F-P-S2 offers IP65 weatherproofing and IK08 vandal resistance. It can be powered via 12VDC or PoE, providing flexible installation options. The aluminum alloy front plate and support for surface or flush mounting make this villa door station a versatile solution for secure entry management in residential applications.
