Category: Electrical Equipment & Supplies
Subcategory: Telecommunication Equipment & Parts
Brand: Dahua Video Intercoms
Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Main Processor
Embedded Processor
Button Type
Mechanical
Interoperability
ONVIF, CGI
Network Protocol
RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF
Camera
1/2.8" CMOS 2-MP HD camera
Field of View
H: 110°, V: 62°, D: 133°
WDR
120 dB
Noise Reduction
3D NR, 2D NR
Video Compression
H.264, H.265
Video Resolution
Main stream: 720p, WVGA, D1, CIF / Sub stream: 1080p, WVGA, D1, QVGA, CIF
Video Frame Rate
PAL: 25 fps, NTSC: 30 fps
Light Compensation
Auto IR
Day/Night
Auto (ICR)/Color/B/W; Color/B/W
Audio Compression
G.711a, G.711u, PCM
Audio Input/Output
1 / Built-in speaker
Audio Mode
Two-way audio
Audio Enhancement
Echo suppression, Digital noise reduction
Communication Mode
Full digital
Unlock Mode
Card, app, indoor monitor
Card Type
IC card
Storage
Micro SD card (max. 256 GB)
Card Reading Distance
0 cm–3 cm (0"–1.18")
Wi-Fi
Yes
Wireless Standard
IEEE 802.11b/g/n
Wireless Frequency
2.4 GHz
Network Port
1 × RJ-45 10/100 Mbps Ethernet port
Casing
PC + ABS
Card Capacity
3000
Exit Button
1
Door Status Detection
1
Lock Control
1
Alarm
SOS
Power Supply
12–33 VDC, 1 A; Standard PoE
Installation
Surface Mount
Certifications
CE, FCC
Protection
IP65
Dimensions
160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18")
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Power Consumption
≤ 3.5 W (standby), ≤ 6 W (working)
Net/Gross Weight
0.18 kg (0.40 lb) / 0.4 kg (0.88 lb)
Main Processor
Embedded processor
Network Protocol
RTSP, RTP, SIP, DNS, SSH
Screen Type
Capacitive touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a, G.711u, PCM
Audio Input/Output
1 / Built-in speaker
Audio Mode
Two-way Audio
Audio Enhancement
Echo suppression
Communication Mode
Full digital
Information Release
Receive and view text information released by the management center
DND Mode
Do not disturb period can be set
Number of Extensions
Villa: 9 / Apartment: 4
Wi-Fi
Yes
Wireless Standard
IEEE 802.11b/g/n
Wireless Frequency
2.4 GHz
Wireless Security
WPA/WPA2, WPA-PSK/WPA2-PSK
Alarm Input/Output
6 / 1
Power Output
1 (12 V/200 mA)
Door Bell
Yes (use any alarm input port)
Network
1 × RJ-45 10/100 Mbps Ethernet port
Alarm
SOS
Casing
PC + ABS
Power Supply
12 VDC 1A; Standard PoE
Installation
Surface Mount
Certifications
CE, FCC
Dimensions
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–95% RH (non-condensing)
Operating Altitude
0 m–3,000 m (0 ft–9,842.51 ft)
Power Consumption
≤2 W (standby), ≤6 W (working)
Net/Gross Weight
0.34 kg (0.74 lb) / 0.58 kg (1.27 lb)
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

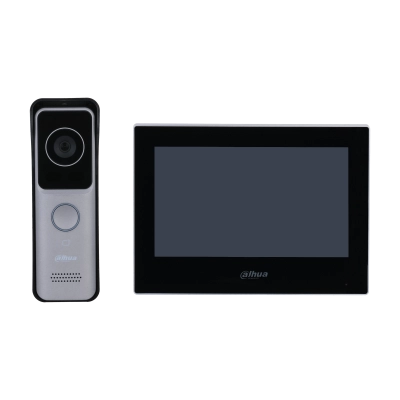

The KTW02 Wi-Fi Villa Door Station and IP Indoor Monitor is an advanced security solution designed for modern homes. Featuring a high-quality camera with a wide field of view and superior night vision capabilities, it ensures clear and reliable video surveillance. The indoor monitor boasts a user-friendly touchscreen interface, providing easy access to live video feeds, two-way audio communication, and remote door unlocking. With support for Wi-Fi connectivity and seamless integration with smart home systems, this device offers convenience and enhanced security. The system's robust construction and sleek design make it an ideal choice for any villa or upscale residence.
