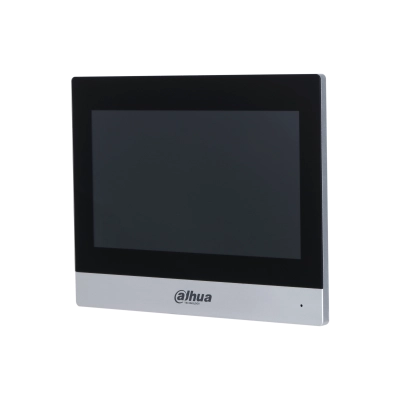

IP& Wi-Fi Indoor Monitor-VTH8621KMS-WP

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

RTSP, RTP, SIP, DNS, SSH

Screen Type

Capacitive Touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Compression

G.711a, G.711u, PCM

Enhancement

Echo suppression

Bit Rate

16 kHz, 16 Bit

Communication Mode

Full digital

Information Release

Receive and view text information

DND Mode

Do not disturb period can be set

Number of Extensions

Villa: 9, Apartment: 4

Wireless Standard

IEEE802.11b/g/n

Frequency Range

2.4 GHz

Security Encryption

WPA/WPA2, WPA-PSK/WPA2-PSK

External Storage

Micro SD card (up to 64 GB)

Casing

Metal

Port

RS-485: 1

Alarm Input

6

Alarm Output

1

Door Bell

Yes (use any alarm input port)

Network

One 10/100 Mbps Ethernet

Color

Silver

Power Supply

12 VDC 1A, Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE, FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

185 mm × 147 mm × 23.5 mm (7.28" × 5.79" × 0.93")

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 3W; working ≤ 7W

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.58 kg (1.28 lb)
