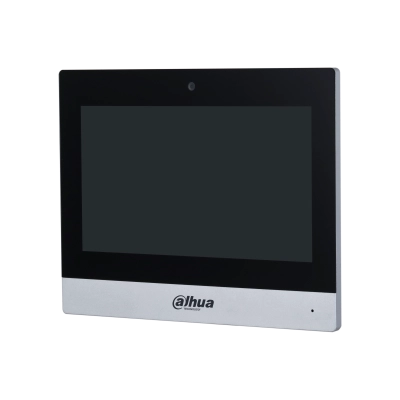

CW Digital Indoor Monitor-VTH8A21KMS

Main Processor

Embedded processor

Operating System

Android 8.1

Network Protocol

IPv4; TCP; SIP; UDP; RTSP

Video Compression

H.264

Image Sensor

1/2.9" 2MP CMOS

Lens

2mm

Angle of View

D: 84.5°, H: 73.5°, V: 58.4°

Screen Type

7" full-color TFT

Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1–ch omnidirectional microphone

Audio Output

Built-in speaker

Audio Mode

Two-way voice call

Audio Bit Rate

16 kHz, 16 bit

Communication Mode

Full digital

Information Release

Receive and view information released by the management center

DND Mode

Do not disturb period can be set.

Number of Extensions

Villa: 9; Apartment: 4; Wi-Fi intercom: 1 main monitor, 2 extension monitors

Wi-Fi

Yes

Casing

Aluminum + ABS

Alarm Input

6

Alarm Output

1

Network Port

RJ-45 port, 10/150 Mbps self-adaptive

SOS

Yes

Appearance Color

Silver

Power Supply

12–24 VDC, 1 A; Standard PoE

Power Adapter

Not Standard

nstallation

Surface

Operating Humidity

10%–90% (RH), non-condensing

Power Consumption

≤ 1 W (standby), ≤ 6 W (working)

Gross Weight

0.41 kg (0.90 lb)
