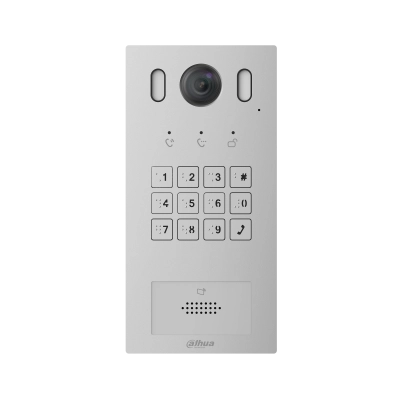

Villa Outdoor Station-VTO3221E-P


Minimum Order Quantity: 1 PCS


Model

VTO3221E-P

Main Processor

Embedded Micro Processor

Operating System

Embedded Linux

Video Compression

H.264

Image Sensor

1/2.9" 2MP CMOS

Auto Gain Control

White Light

Lens

2mm

Angle of View

H: 138°, V: 78°, D: 158°

Day/Night

Color Image

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Dual-way

Keypad

Mechanical Button with Braille

Reader

Mifare Card (13.56 MHz)

Alarm In/Out

1/1

Door Control

1 Relay Out

Wiegand In

1

Ethernet

10/100 Mbps

Network Protocols

TCP/IP

Ingress Protection

IK08, IP55

Tamper Switch

1

Installation

Surface & Flush

Material

Aluminum

Power

12 VDC, 2A, PoE (802.3af)

Power Consumption

Standby ≤2W, Working ≤7W

Operating Temperature

-40°C to +60°C

Relative Humidity

20% to 95% RH

Dimensions

200 x 98 x 32 mm

Weight

1.5 kg


T

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

The Dahua VTO3221E-P is a robust villa outdoor station designed for secure access control. It features a 2MP CMOS camera with a 138° wide field of view, a mechanical button keypad with braille, and a Mifare card reader for user authentication. The station supports dual-way audio communication, allowing residents to communicate with visitors. Engineered for reliable outdoor performance, the VTO3221E-P offers IP55 weatherproofing and IK08 vandal resistance. It can be powered via 12VDC or PoE, providing flexible installation options. The aluminum alloy front plate and support for surface or flush mounting make the VTO3221E-P a versatile solution for villa and residential access control applications. Its combination of security features, durability, and convenience make it an ideal choice for secure entry management.
