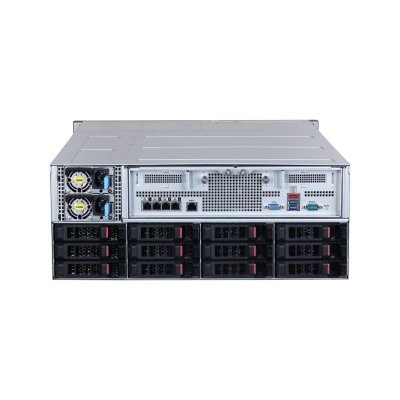

-Dahua-EVS8236X -Dahua 1024CH 48-bay 6U Embedded Video Storage

Main Processor

Dual 64-bit high-performance multi-core processor

Operating System

Embedded LINUX OS

Operating Interface

Web (PCAPP)

Controller

Single controller

Cache

16 GB by default (extendable to 256 GB)

AI Applications

Face detection, recognition, IVS, vehicle recognition, thermal detection

Camera Compatibility

Thermal, People Counting, Bullet-PTZ Smart Track, Fisheye Dewarp

Audio and Video

Access Channels: 1024, Multi-screen Display: 16-channel live view

Third-party Access

ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P, etc.

Mobile Phone Access

DMSS

Interoperability

ONVIF (Profile S), CGI, SDK

Network Mode

Multiple-address mode, Load balance, Fault-tolerance, Link aggregation

Recording Playback

Multi-channel playback, max. 16-channel

Storage Method

Internal HDD, Backup: eSATA, USB

RAID

RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60

Alarm

Motion detect, tampering, IPC offline, HDD full, temperature, etc.

Ports

HDD: 36 slots, SATA; SAS, eSATA: 1 port, USB: 2 × USB3.0, 2 × USB2.0, Network: 1 × 1-GbE management port, 4 × 1-GbE LAN ports

Power Supply

1+1 redundant power supply

Form Factor

4U

Dimensions

737mm × 483mm × 175mm (L × W × H)

Operating Temperature

0°C to 45°C (+32°F to +113°F)

Certifications

CE, FCC
