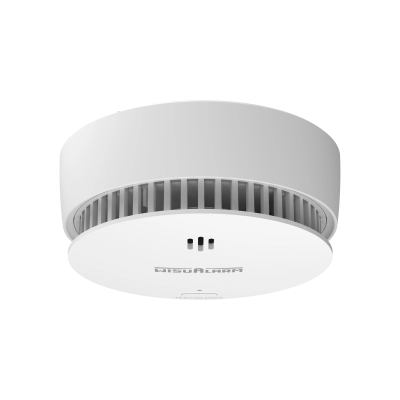

Wireless Interconnected Smoke Alarm-HY-SA30A-R8

Available

Category: Security, Safety System & Service

Subcategory: Security Alarms, Detectors & Devices

Brand: Dahua Smoke Alarms

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Working Principle

Photoelectric

Sampling Period

9 seconds

Alarm Types

Smoke alarm, fault alarm, low battery warning

Alarm Volume

85 dB (A) at 3 m (9.84 ft)

Alarm Mode

Visual and audible

Silencing Function

Yes

Silence Duration

12 minutes

Infrared Silence

Yes

Pre-Set Alarm Value

0.2 dB/m - 0.3 dB/m

Indicator Lights

Standby: Green flashes once per minute <br> Alarm/Fault: Red flashes once per second <br> Low battery: Red flashes once per minute

Operating Frequency

868 MHz

Max. Interconnected Units

Up to 24 units

Coverage Area

20 m² - 40 m² (for spaces < 8 m in height)

Battery Life

10 years

Power Source

3V CR123A lithium battery (non-replaceable)

Operating Current

Monitoring: ≤ 15 μA (avg.) <br> Alarm: ≤ 25 mA (avg.)

Operating Environment

Indoor

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

≤ 95% RH (non-condensing)

Appearance

White

Casing

PC+ABS

Dimensions

Ø98 mm × H43.1 mm (Ø3.85" × H1.70")

Weight

138 g (0.30 lb)

Installation

Ceiling mount

Certifications

TÜV and CE listed

Compliance Standard

EN 14604:2005+AC:2008

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

The Wireless Interconnected Smoke Alarm HY-SA30A-R8 provides reliable smoke detection with advanced interconnected capabilities. Using photoelectric technology, it quickly senses smoke, triggering a loud 85dB alarm at 3 meters. It features a 9-second sampling period and supports infrared silence with a 12-minute duration. LED indicators show standby (green), alarm/fault (red flash per second), and low battery (red flash per minute) statuses. Operates on a 868 MHz frequency, connecting up to 24 units wirelessly. Designed for indoor use with a wide operating temperature range (-10°C to +55°C) and meets EN 14604:2005+AC:2008 standards. Powered by a 10-year non-replaceable lithium battery.
