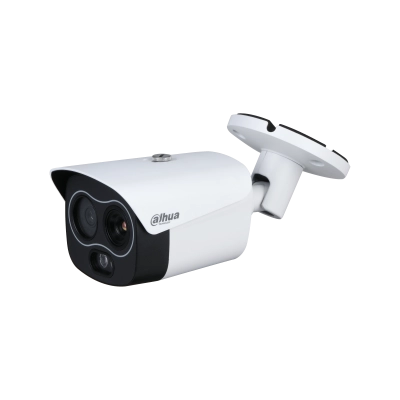

Thermal Network Mini Hybrid Bullet Camera-TPC-BF1241-T-S2

Detector Type

Vanadium oxide uncooled focal plane detector

Max. Resolution

256 (H) × 192 (V)

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Field of View

3.5 mm: H: 50.6°; V: 37.8°

Close Focus Distance

3.5 mm: 0.5 m (1.64 ft)

Detection Distance

See detailed specifications for each lens

Recognition Distance

See detailed specifications for each lens

Identification Distance

See detailed specifications for each lens

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16 levels

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible Image Sensor

1/2.7'' CMOS

Visible Max. Resolution

2336 (H) × 1752 (V)

Day/Night

Auto (ICR); Color; B/W

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Intelligence

Tripwire; Intrusion; Heat Detection & Alarm; Human & Vehicle Classification; Smoking Detection; Call Detection

Temperature Measurement Range

Various focal lengths with specific min and max distances

Video Compression

H.265; H.264M; H.264H; H.264B; MJEPG

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Audio Compression

G.711a; G.711mu; PCM

Ports

Network: 1 × RJ-45 (10/100 Base-T); Audio Input: 1; Audio Output: 1; Alarm Input: 1; Alarm Output: 1; RS-485: 1 pair

Power Supply

12 VDC ± 20%; PoE

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Protection

IP67

Product Dimensions

205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'') (L × W × H)

Weight

≤0.9 kg (1.98 lb)
